EllumenoLED tri-proof lights up to 2400 mm, battens, IP65 bulkheads and emergency exit lights.
Price on request — quoted per part number
Quotes within 24 hours on working days

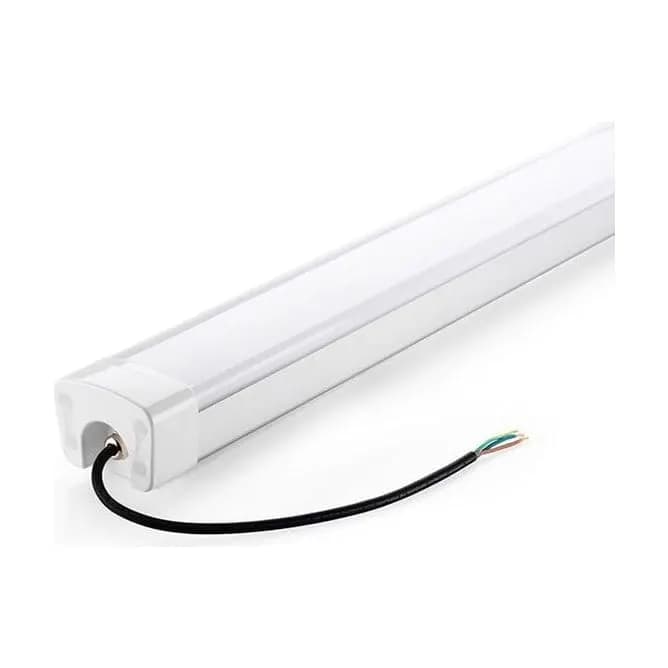

Tri-proof lights are sealed linear fittings for areas with dust, moisture and wash-down: food and beverage lines, cold stores, car parks and process areas. Ellumeno tri-proof lights run from 600 mm 22 W to 2400 mm 100 W at 160 lm/W, in 4000 K or 6000 K, with a 120° beam.

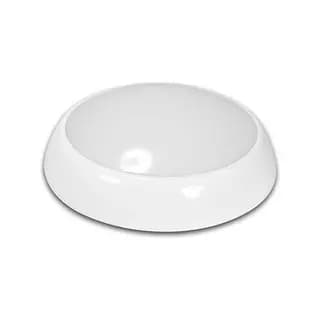

For dry indoor areas, the LED battens (32, 56 and 62 W) replace fluorescent tube fittings one-for-one. The IP65 bulkheads (14 and 18 W) are rugged fittings for stairwells, plant rooms and outdoor walls, and the ELM-EXTEM exit light keeps escape routes signed for up to 180 minutes during a power cut.
Batten and bulkhead codes take a colour suffix: WW 3000 K, NW 4000 K or CW 5000 K — for example ELM-GLL56NW. Tell us the area and we select the right fittings.
The codes our customers ask for most. Add the ones you need to your quote list — or send any other Tri-Proof, Batten & Bulkhead Lights variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|
| ELT06002240 | LED tri-proof light, 600 mm, 22 W, 3,520 lm, 4000 K, 120°, 160 lm/W | 22 W · 600 mm | |
| ELT06002260 | LED tri-proof light, 600 mm, 22 W, 3,520 lm, 6000 K, 120°, 160 lm/W | 22 W · 600 mm | |
| ELT12004040 | LED tri-proof light, 1200 mm, 40 W, 6,400 lm, 4000 K, 120°, 160 lm/W | 40 W · 1200 mm | |
| ELT12004060 | LED tri-proof light, 1200 mm, 40 W, 6,400 lm, 6000 K, 120°, 160 lm/W | 40 W · 1200 mm | |
| ELT12006040 | LED tri-proof light, 1200 mm, 60 W, 9,600 lm, 4000 K, 120°, 160 lm/W | 60 W · 1200 mm | |
| ELT12006060 | LED tri-proof light, 1200 mm, 60 W, 9,600 lm, 6000 K, 120°, 160 lm/W | 60 W · 1200 mm | |
| ELT15006040 | LED tri-proof light, 1500 mm, 60 W, 9,600 lm, 4000 K, 120°, 160 lm/W | 60 W · 1500 mm | |
| ELT15006060 | LED tri-proof light, 1500 mm, 60 W, 9,600 lm, 6000 K, 120°, 160 lm/W | 60 W · 1500 mm | |
| ELT240010040 | LED tri-proof light, 2400 mm, 100 W, 16,000 lm, 4000 K, 120°, 160 lm/W | 100 W · 2400 mm | |
| ELT240010060 | LED tri-proof light, 2400 mm, 100 W, 16,000 lm, 6000 K, 120°, 160 lm/W | 100 W · 2400 mm | |
| ELM-GLL32 | LED batten, 1119 mm, 32 W, 3,850 lm, 120 lm/W, IP20 — add WW (3000 K), NW (4000 K) or CW (5000 K) | 32 W · 1119 mm | |
| ELM-GLL56 | LED batten, 1473 mm, 56 W, 6,700 lm, 120 lm/W, IP20 — add WW (3000 K), NW (4000 K) or CW (5000 K) | 56 W · 1473 mm | |
| ELM-GLL62 | LED batten, 1755 mm, 62 W, 7,500 lm, 120 lm/W, IP20 — add WW (3000 K), NW (4000 K) or CW (5000 K) | 62 W · 1755 mm | |
| ELM-BLK14 | LED bulkhead, 14 W, 1,400 lm, IP65, opal diffuser — add WW (3000 K), NW (4000 K) or CW (5000 K) | 14 W · IP65 | |
| ELM-BLK18 | LED bulkhead, 18 W, 1,800 lm, IP65, opal diffuser — add WW (3000 K), NW (4000 K) or CW (5000 K) | 18 W · IP65 | |
| ELM-EXTEM | LED exit light, 3 W, up to 180 min emergency backup, 3.6 V 1 Ah battery, IP40 | 3 W · 180 min |
Send a photo of the Ellumeno part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
Ellumeno Tri-Proof, Batten & Bulkhead Lights prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Sealed tri-proof fittings over filling and packing lines.
LED battens replacing tube lights.
Exit signs with battery backup.
Hygienic automation, coding and water systems for high-speed food and beverage lines.
Explore
Process control, coding and water treatment for milk and dairy plants.
Explore
RO and mineral-water plants with filling-line coding and automation.
Explore
Precise coding, controlled automation and clean utilities for regulated production.
ExploreMore from Ellumeno
16 part numbersEllumeno LED high bay lights: round high bays from 60 W to 245 W (160 lm/W, 4000 K or 6500 K, 90° optic, DALI) and linear high bays from 100 W to 200 W (180 lm/W, 6000 K) for factories and warehouses.
8 part numbersEllumeno LED flood lights from 50 W to 200 W: up to 26,000 lm and 130 lm/W, warm 3000 K or daylight 6500 K, 110° wide beam — for yards, loading bays, facades and perimeter lighting.
8 part numbersEllumeno backlit LED panels in 2×2 ft (600×600) and 1×4 ft (300×1200) sizes, 30 W and 36 W, 120 lm/W, 4000 K or 6500 K, with a wide 170° light spread for offices, labs and production support areas.
21 part numbersEllumeno LED downlights (4–40 W recessed, slim, surface and COB Zirconium), Lumia COB track lights (20–50 W) and swivelling grille lights — for offices, showrooms, reception areas and corridors.
FAQs
Protected against water, dust and corrosion — a sealed fitting for wet, dusty or wash-down areas.
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
The table shows the codes we are asked for most; we offer the other Tri-Proof, Batten & Bulkhead Lights variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Yes. We offer genuine Ellumeno products only — no copies, and no substitutes without your approval.
Talk to an engineer
Send the part numbers and quantities, a BOM or a nameplate photo. We check availability and reply with an itemised quotation.
Quotes within 24 hours on working days
Mon–Sat, 10:00 am – 8:00 pm
Ellumeno and related names, product images and logos are trademarks of their respective owner, used on this page for identification only. See our trademark notice.
