FotekSSR-DA, SSR-AA and SSR-DD solid state relays from 5 A to 75 A for heater and load switching.
Price on request — quoted per part number
Quotes within 24 hours on working days
A solid state relay switches a load with semiconductors instead of moving contacts, so it switches thousands of times an hour silently and without wear. That makes SSRs the standard way to control heaters on plastic machines, ovens, sealers and extruders, usually driven by a temperature controller's voltage-pulse output.
The Fotek SSR is one of the most widely used relays in Pakistani panels. The code is simple: the number is the load current and the letters the control and load type. SSR-40DA is 40 A with a 4–32 V DC control input switching an AC load; SSR-25AA is controlled by 80–250 V AC; SSR-xxDD switches DC loads. -H versions handle loads up to 480 V AC.
An SSR must be mounted on a heat sink sized for the load current, and we recommend derating for hot panels. Send us the heater current and supply voltage and we select the relay and heat sink.
The codes our customers ask for most. Add the ones you need to your quote list — or send any other Single-Phase Solid State Relays (SSR) variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|
| SSR-10DA | SSR DC→AC, control 4–32 V DC, load 24–380 V AC | 10 A | |
| SSR-25DA | SSR DC→AC, control 4–32 V DC, load 24–380 V AC | 25 A | |
| SSR-40DA | SSR DC→AC, control 4–32 V DC, load 24–380 V AC | 40 A | |
| SSR-50DA | SSR DC→AC, control 4–32 V DC, load 24–380 V AC | 50 A | |
| SSR-75DA | SSR DC→AC, control 4–32 V DC, load 24–380 V AC | 75 A | |
| SSR-40DA-H | SSR DC→AC high voltage, control 4–32 V DC, load 90–480 V AC | 40 A · 480 V | |
| SSR-10AA | SSR AC→AC, control 80–250 V AC, load 24–380 V AC | 10 A | |
| SSR-25AA | SSR AC→AC, control 80–250 V AC, load 24–380 V AC | 25 A | |
| SSR-40AA | SSR AC→AC, control 80–250 V AC, load 24–380 V AC | 40 A | |
| SSR-10DD | SSR DC→DC, control 4–32 V DC, load 5–60 V DC | 10 A DC | |
| SSR-25DD | SSR DC→DC, control 4–32 V DC, load 5–120 V DC | 25 A DC |
Send a photo of the Fotek part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
Fotek Single-Phase Solid State Relays (SSR) prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Barrel heaters on injection moulding and extrusion machines.
Fast, silent switching of heating elements.
High-cycle switching without contact wear.
Robust instrumentation, drives and safety systems for demanding processes.
Explore
Coding, labeling and end-of-line automation for faster, error-free packing.
Explore
Hygienic automation, coding and water systems for high-speed food and beverage lines.
Explore
Drives, controls and energy savings for spinning, weaving and processing mills.
ExploreMore from Fotek
7 part numbersFotek TSR three-phase solid state relays with DC or AC control, 25 A to 75 A per phase and load voltages up to 380 V AC (480 V AC on -H versions), for three-phase heater banks.
12 part numbersFotek NT and MT PID temperature controllers in 48×48 to 96×96 mm panel sizes with relay, SSR voltage-pulse or 4–20 mA output, plus economical TC series controllers.
11 part numbersFotek PM cylindrical (M12, M18, M30) and PS square inductive proximity sensors with NPN or PNP outputs, cable or M12 connector, for metal detection on machines and conveyors.

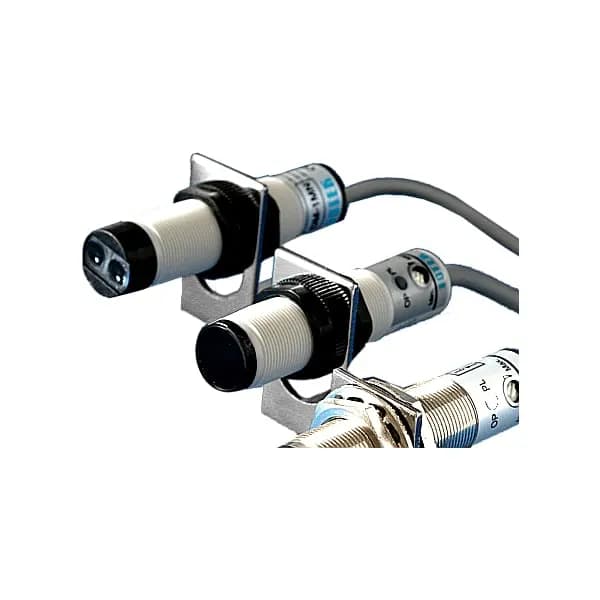

10 part numbersFotek photoelectric sensors: M18 tubular CDR/CDM/CDT, A3 and E3 series in diffuse (reflex), mirror-reflex and through-beam versions, for object detection on conveyors and machines.

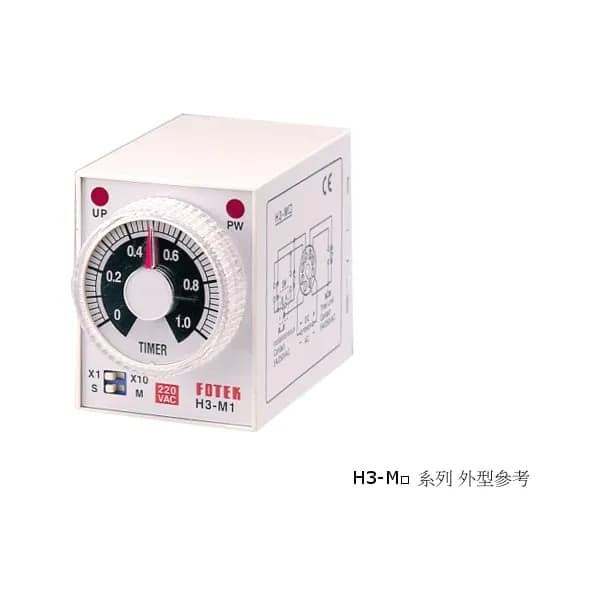

8 part numbersFotek analogue timers: H3 plug-in, H5B and TM48 panel-mount, STP multi-range timers with on-delay, flicker and star-delta functions for motor starters and control circuits.

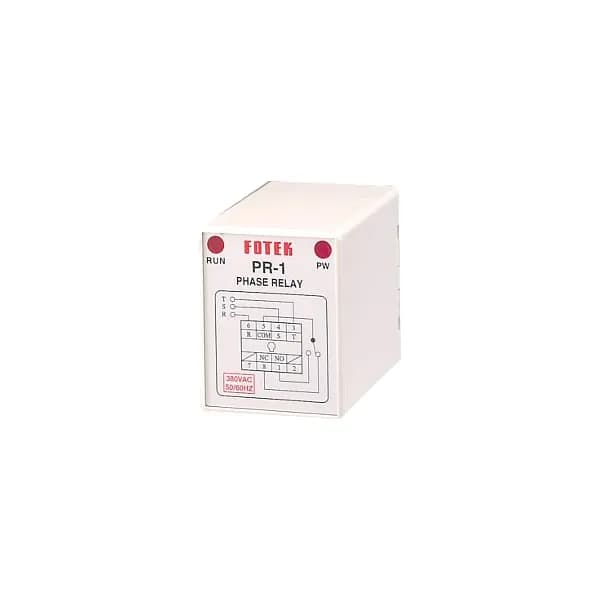

5 part numbersFotek PR-1 phase relays and PVR-3 phase and voltage relays for motor protection, and FR-1 floatless level relays for pump and tank level control with electrode probes.
FAQs
A 40 A single-phase solid state relay with DC control input (4–32 V DC) switching an AC load (24–380 V AC).
Yes. SSRs produce heat at load current and must be mounted on a heat sink sized for the current. Without one they fail quickly.
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
The table shows the codes we are asked for most; we offer the other Single-Phase Solid State Relays (SSR) variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Yes. We offer genuine Fotek products only — no copies, and no substitutes without your approval.
