LEDVANCERecessed low-glare downlights and IP65 surface downlights with 36° or 60° beams.
Price on request — quoted per part number
Quotes within 24 hours on working days
Downlights are the everyday fitting for offices, corridors, reception areas and canopies. LEDVANCE offers two ranges that cover most commercial and industrial buildings.

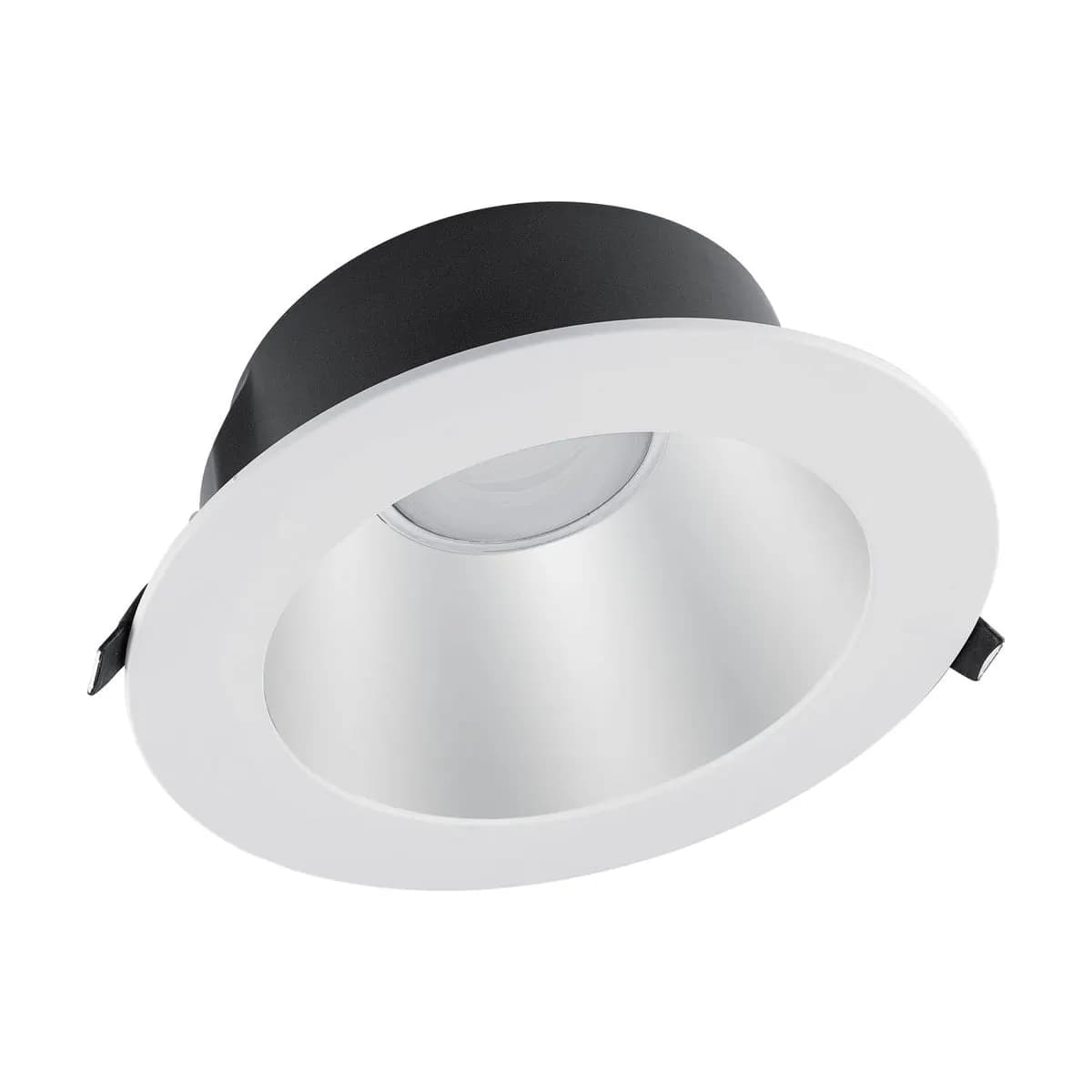

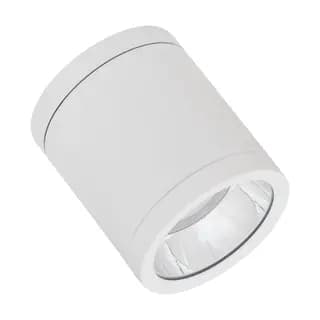

The DL UGR19 Performance downlights are recessed fittings for 155 mm (14 W) and 195 mm (21 W) cut-outs, with low glare (UGR<19) for office work and IP54 protection from the room side. The DL Surface IP65 downlights mount directly on the ceiling where there is no void — useful for concrete ceilings, canopies and wet areas — in 90 mm (15 W) and 160 mm (30 W) sizes, with a 36° or 60° beam and a white or black housing.
Colour codes: 830 = 3000 K warm white, 840 = 4000 K neutral white. Each row lists the EAN barcode on the box.
The codes our customers ask for most. Add the ones you need to your quote list — or send any other LED Downlights (DL UGR19 & DL Surface) variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|
| DL UGR19 PFM DN155 14 W 830 WT IP54Order no. 4058075459137 | Recessed downlight UGR19 Performance, 14 W, 3000 K, 155 mm cut-out, white, IP54 | 14 W · 3000 K | |
| DL UGR19 PFM DN155 14 W 840 WT IP54Order no. 4058075459151 | Recessed downlight UGR19 Performance, 14 W, 4000 K, 155 mm cut-out, white, IP54 | 14 W · 4000 K | |
| DL UGR19 PFM DN195 21 W 830 WT IP54Order no. 4058075459250 | Recessed downlight UGR19 Performance, 21 W, 3000 K, 195 mm cut-out, white, IP54 | 21 W · 3000 K | |
| DL UGR19 PFM DN195 21 W 840 WT IP54Order no. 4058075459274 | Recessed downlight UGR19 Performance, 21 W, 4000 K, 195 mm cut-out, white, IP54 | 21 W · 4000 K | |
| DL SURFACE IP65 DN 90 P 15W 830 36D WTOrder no. 4058075768857 | Surface downlight IP65, 15 W, 3000 K, 36° beam, white housing | 15 W · 3000 K | |
| DL SURFACE IP65 DN 90 P 15W 840 36D WTOrder no. 4058075768871 | Surface downlight IP65, 15 W, 4000 K, 36° beam, white housing | 15 W · 4000 K | |
| DL SURFACE IP65 DN 90 P 15W 830 36D BKOrder no. 4058075768895 | Surface downlight IP65, 15 W, 3000 K, 36° beam, black housing | 15 W · 3000 K | |
| DL SURFACE IP65 DN 90 P 15W 840 36D BKOrder no. 4058075768918 | Surface downlight IP65, 15 W, 4000 K, 36° beam, black housing | 15 W · 4000 K | |
| DL SURFACE IP65 DN 90 P 15W 830 60D WTOrder no. 4058075768963 | Surface downlight IP65, 15 W, 3000 K, 60° beam, white housing | 15 W · 3000 K | |
| DL SURFACE IP65 DN 90 P 15W 840 60D WTOrder no. 4058075768987 | Surface downlight IP65, 15 W, 4000 K, 60° beam, white housing | 15 W · 4000 K | |
| DL SURFACE IP65 DN 160 P 30W 830 36D WTOrder no. 4058075769045 | Surface downlight IP65, 30 W, 3000 K, 36° beam, white housing | 30 W · 3000 K | |
| DL SURFACE IP65 DN 160 P 30W 840 36D WTOrder no. 4058075769076 | Surface downlight IP65, 30 W, 4000 K, 36° beam, white housing | 30 W · 4000 K | |
| DL SURFACE IP65 DN 160 P 30W 830 60D WTOrder no. 4058075769137 | Surface downlight IP65, 30 W, 3000 K, 60° beam, white housing | 30 W · 3000 K | |
| DL SURFACE IP65 DN 160 P 30W 840 60D WTOrder no. 4058075769151 | Surface downlight IP65, 30 W, 4000 K, 60° beam, white housing | 30 W · 4000 K |
Send a photo of the LEDVANCE part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
LEDVANCE LED Downlights (DL UGR19 & DL Surface) prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Low-glare recessed downlights.
IP65 surface downlights.
General lighting.
Precise coding, controlled automation and clean utilities for regulated production.
Explore
Flexible lines, accurate coding and dependable spares for fast-moving production.
Explore
Hygienic automation, coding and water systems for high-speed food and beverage lines.
ExploreMore from LEDVANCE
22 part numbersLEDVANCE LED high bay lights: HB Performance (Gen 4) from 87 W to 210 W with 70° or 110° optics, and HB Compact Value from 83 W to 225 W — IP65, 4000 K or 6500 K, for production halls and warehouses.
22 part numbersLEDVANCE LED floodlights: FL Compact Value (18–178 W, colour code 8304065, black or white housing) and FL Area Value (16–160 W, 3000 K or 4000 K, A48X85 area optic) for yards, loading bays, facades and car parks.
6 part numbersLEDVANCE PL Compact Value LED panels, 26 W, in 600×600 and 1200×300 mm, 3000 K or 4000 K, with standard and U19 low-glare (UGR<19) versions for offices, labs and control rooms.
15 part numbersLEDVANCE damp-proof LED luminaires: DP Performance (600–1500 mm, 13–61 W, IP66, 830/840/865) and DP FIT Value (600–1500 mm, 15–51 W, IP65, selectable colour) for wash-down areas, cold stores, car parks and plant rooms.
18 part numbersLEDVANCE LED T8 tubes in 600, 1200 and 1500 mm: T8 EM Performance for fittings with conventional ballasts, and T8 Universal Value for conventional, electronic or mains wiring — in 3000, 4000 and 6500 K.
FAQs
Recessed downlights need a false-ceiling void; surface downlights mount directly on concrete or canopy ceilings.
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
The table shows the codes we are asked for most; we offer the other LED Downlights (DL UGR19 & DL Surface) variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Yes. We offer genuine LEDVANCE products only — no copies, and no substitutes without your approval.
