Pepperl+FuchsPepperl+Fuchs K-System Isolated Barriers
Intrinsic safety isolators for hazardous-area signals — switch amplifiers, transmitter supplies, current drivers and temperature converters.
- K-System
- KCD2
- KFD2
- KFA6
- Switch amplifiers, transmitter supplies, current drivers, temperature converters
- Up to SIL 2 (IEC/EN 61508)
- 12.5 mm KCD2 and 20 mm KFD2 housings
- 24 V DC via Power Rail (KFA6: 230 V AC)
- HART pass-through on transmitter and driver modules
Price on request — quoted per part number
Quotes within 24 hours on working days
- Genuine products onlyNo copies, no substitutes without your approval.
- Itemised quotationsClear prices, lead times and terms for every line.
- Engineer-checkedWe confirm the right part for your application.
- Delivery across PakistanDispatched to your plant, wherever it is.
About the Pepperl+Fuchs K-System Isolated Barriers
In chemical plants, refineries, paint shops and other hazardous areas, field instruments must be connected through intrinsic safety barriers that limit the energy reaching the Ex zone. Pepperl+Fuchs K-System isolators are among the most widely installed barriers in process plants worldwide, and a common spare in Pakistani process industries.
Each module does one job. Switch amplifiers (KCD2-SR, KFD2-SR2) pass NAMUR sensor or dry contact signals to relay outputs. SMART transmitter power supplies (KCD2-STC, KFD2-STC4) feed 2-wire 4–20 mA transmitters and pass HART. Current drivers (KCD2-SCD, KFD2-SCD2) drive valve positioners in the hazardous area, and temperature converters (KCD2-UT2, KFD2-UT2) accept thermocouples and RTDs. Most are rated up to SIL 2 and can be powered over the Power Rail.
We supply K-System modules as replacements and for new Ex loops. Send the type code from the module label and we match it; for new loops, send the instrument data and we select the barrier.
Range at a glance
- Functions
- Switch amplifier, SMART transmitter supply, SMART current driver, temperature converter
- Supply
- 24 V DC (Power Rail); 230 V AC on KFA6
- Safety integrity
- Up to SIL 2
- Housing width
- 12.5 mm (KCD2), 20 mm (KFD2/KFA6)
- Signals
- NAMUR/dry contact, 4–20 mA with HART, TC/RTD
Pepperl+Fuchs K-System Isolated Barriers part numbers
The codes our customers ask for most. Add the ones you need to your quote list — or send any other K-System Isolated Barriers variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|

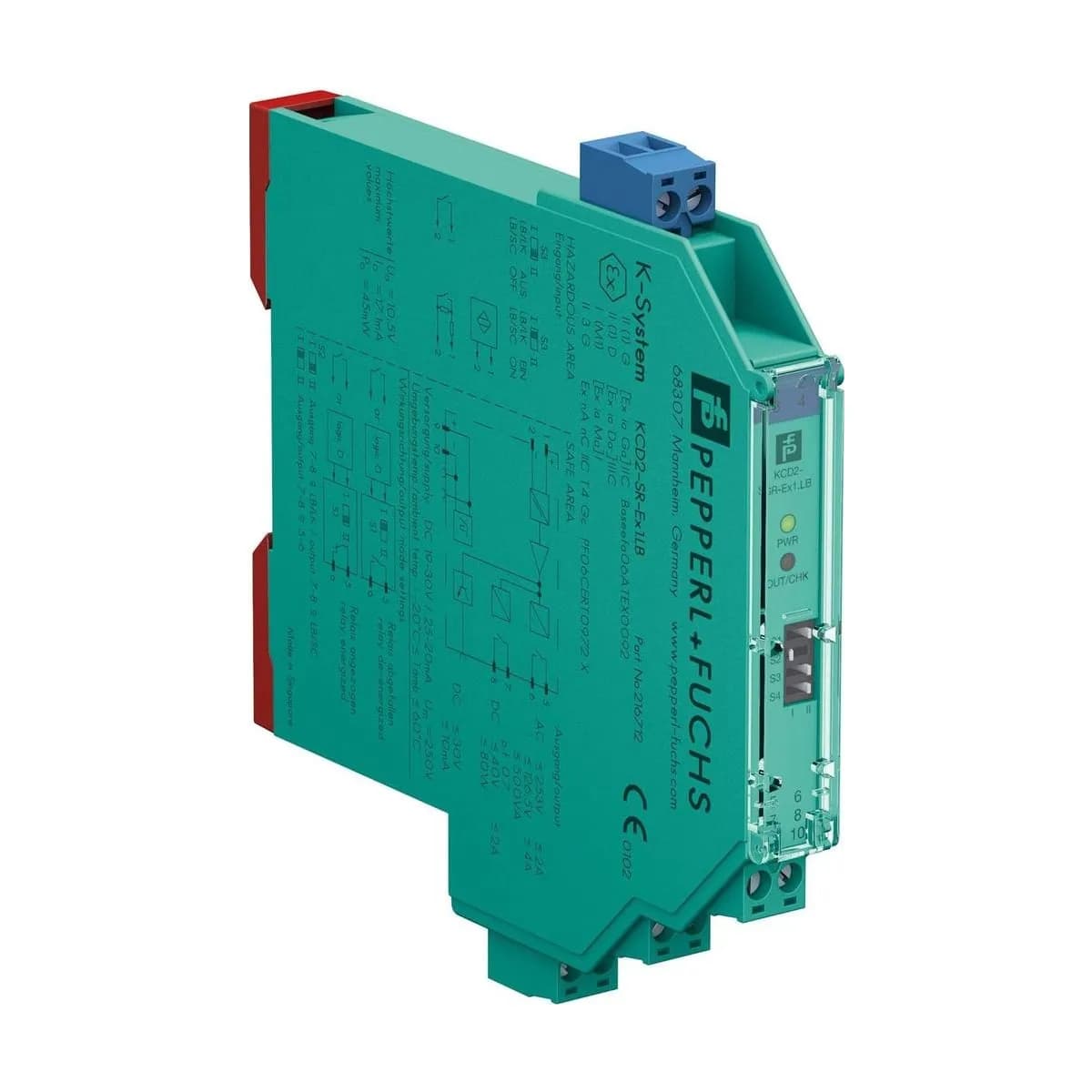

| KCD2-SR-Ex1.LB | Switch amplifier, 1 channel, NAMUR/dry contact input, relay output + fault relay | 1-ch · relay | |
| KCD2-SR-Ex2 | Switch amplifier, 2 channels, NAMUR/dry contact input, relay outputs | 2-ch · relay | |

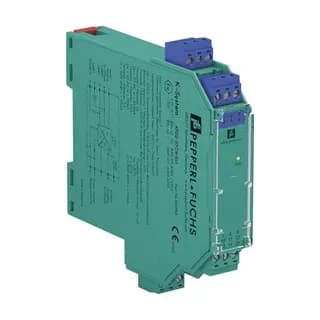

| KFD2-SR2-Ex1.W | Switch amplifier, 1 channel, relay output, line fault detection | 1-ch · relay | |
| KFD2-SR2-Ex2.W | Switch amplifier, 2 channels, relay outputs, line fault detection | 2-ch · relay | |
| KFA6-SR2-Ex1.W | Switch amplifier, 1 channel, 230 V AC supply, relay output | 1-ch · 230 V AC | |
| KFD2-SOT2-Ex1.LB | Isolated switch amplifier, 1 channel, transistor output | 1-ch · transistor | |
| KCD2-STC-Ex1 | SMART transmitter power supply, 1 channel, 4–20 mA / HART | 1-ch · 4–20 mA | |
| KFD2-STC4-Ex1 | SMART transmitter power supply, 1 channel, 2/3-wire, 4–20 mA / HART | 1-ch · 4–20 mA | |
| KCD2-SCD-Ex1 | SMART current driver, 1 channel, for valve positioners, HART | 1-ch · output | |
| KFD2-SCD2-Ex1.LK | SMART current driver, 1 channel, line fault detection, HART | 1-ch · output | |
| KCD2-UT2-Ex1 | Universal temperature converter, TC/RTD input, 4–20 mA output | TC/RTD → 4–20 mA | |
| KFD2-UT2-Ex1 | Universal temperature converter, TC/RTD input, 4–20 mA output | TC/RTD → 4–20 mA |
Not sure of the part number?
Send a photo of the Pepperl+Fuchs part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
Pepperl+Fuchs K-System Isolated Barriers price in Pakistan
Pepperl+Fuchs K-System Isolated Barriers prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Where the K-System Isolated Barriers is used
Chemical and petrochemical plants
Transmitter, valve and switch loops in Zone 0/1/2 areas.
Paint and solvent areas
Level switches and pressure transmitters near flammable liquids.
Replacement of failed barriers
Like-for-like replacement to keep Ex loops certified.
Engineering support for the K-System Isolated Barriers
More from Pepperl+Fuchs
Other Pepperl+Fuchs ranges
- 12 part numbers
8 part numbersRectangular Inductive Sensors
Pepperl+Fuchs rectangular inductive sensors: compact F-series blocks and VariKont L2/U1 housings with sensing ranges up to 40 mm and a rotatable sensing head.
- VariKont
- NBN40-L2
- NBN40-U1
- F10
8 part numbersCapacitive Sensors
Pepperl+Fuchs capacitive sensors in M12, M18 and M30 housings and rectangular blocks, for detecting liquids, powders, granules and plastic or glass parts — often through a container wall.
- CBB
- CBN
- CCB
- CCN
7 part numbersR100 Series Photoelectric Sensors
Pepperl+Fuchs R100 series miniature photoelectric sensors: background-suppression, diffuse, distance, retro-reflective and thru-beam types in one small housing with IO-Link.
- R100
- OBT
- OBD
- OBR
10 part numbersUltrasonic Sensors
Pepperl+Fuchs ultrasonic sensors (UB and UC series) in M18 and M30 housings with switching or analog outputs and ranges up to 6 m — for tank level, distance and transparent objects.
- UB
- UC
- 18GM
- 30GM
FAQs
Frequently asked questions
Can I replace a K-System barrier with a different type?
Only if the replacement has equivalent safety parameters for the loop. The safe choice is the same type code — send it and we supply it.
What is the difference between KCD2 and KFD2 modules?
KCD2 modules are the newer 12.5 mm slim housings; KFD2 modules are 20 mm wide. Both families cover the same main functions.
What is the price of Pepperl+Fuchs K-System Isolated Barriers in Pakistan?
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
My Pepperl+Fuchs part number is not in the table. Can you offer it?
The table shows the codes we are asked for most; we offer the other K-System Isolated Barriers variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Are these genuine Pepperl+Fuchs products?
Yes. We offer genuine Pepperl+Fuchs products only — no copies, and no substitutes without your approval.
