SiemensOn order

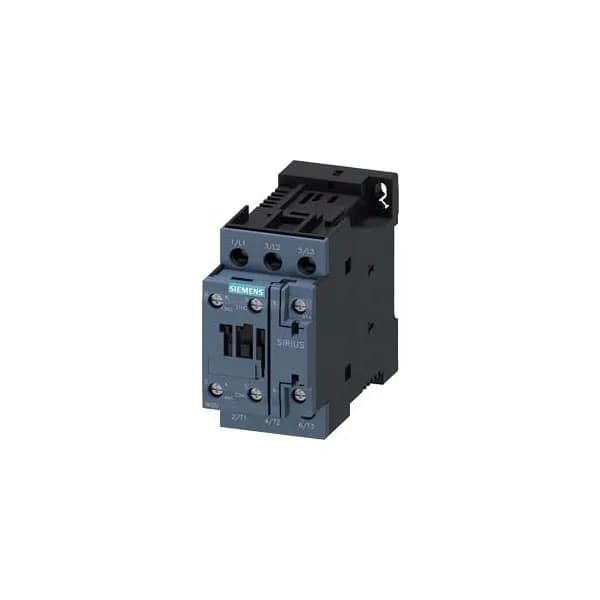

3RT2026-1BB40
SIRIUS power contactor, 25 A AC-3, 11 kW / 400 V, 24 V DC coil, 1 NO + 1 NC
- Rated current AC-3
- 25 A
- Motor power AC-3, 400 V
- 11 kW
- Coil voltage
- 24 V DC
Price on request

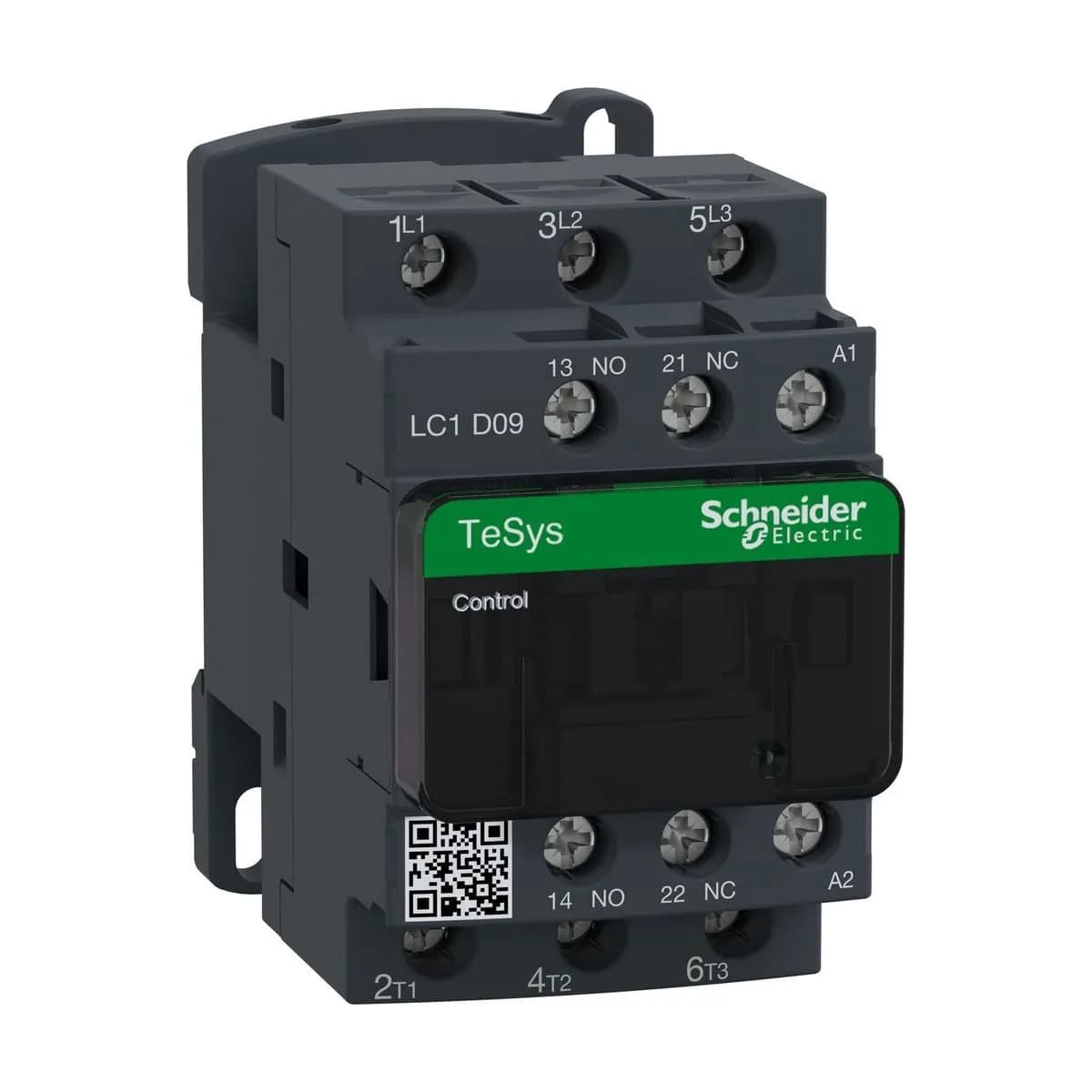

Schneider ElectricLC1D09M7TeSys D contactor, 3P, 9 A AC-3 (≤ 440 V), 220 V AC coil
On orderSeries: TeSys D
- Rated current AC-3
- 9 A
- Motor power AC-3, 400 V
- 4 kW
- Coil voltage
- 220 V AC
- Rated voltage
- ≤ 440 V
- Poles
- 3 (3 NO)
- Auxiliary contacts
- 1 NO + 1 NC
- Genuine product
- Engineer-checked before quoting
- Delivery across Pakistan
Overview
One of the most widely used contactors in Pakistani panels: a three-pole TeSys D rated 9 A in AC-3 for motors up to about 4 kW at 400 V. The 220 V AC coil works directly from the control supply, and the integrated auxiliary contacts handle hold-in and interlock wiring without extra blocks.
- 9 A AC-3, three main poles
- 220 V AC 50/60 Hz coil
- Integrated 1 NO + 1 NC auxiliary contacts
- Accepts TeSys LRD overload relays directly
Specifications
| Rated current AC-3 | 9 A |
|---|---|
| Motor power AC-3, 400 V | 4 kW |
| Coil voltage | 220 V AC |
| Rated voltage | ≤ 440 V |
| Poles | 3 (3 NO) |
| Auxiliary contacts | 1 NO + 1 NC |
Need installation or integration?
Our engineers can install, program and commission it — Control Panels.
Related products
All contactors & motor starters
Schneider ElectricOn orderLRD08
TeSys LRD thermal overload relay, 2.5–4 A, class 10A
- Setting range
- 2.5 – 4 A
- Trip class
- 10A
- Auxiliary contacts
- 1 NO + 1 NC
Price on request
SiemensOn order3RV2011-1JA10
SIRIUS motor protection circuit breaker, size S00, 7–10 A, CLASS 10
- Setting range
- 7 – 10 A
- Poles
- 3
- Trip class
- CLASS 10
Price on request
