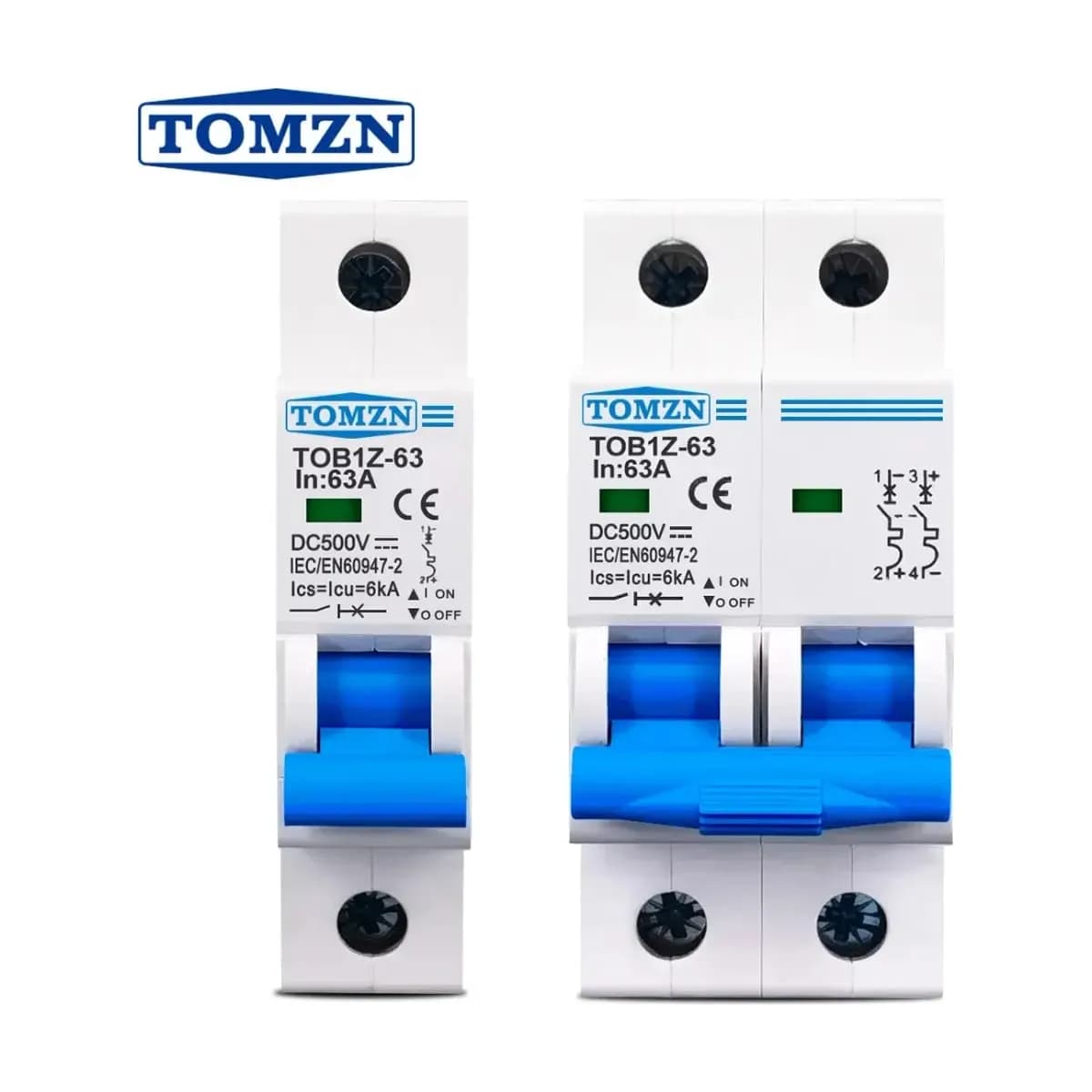

TOMZNTOB1Z-63DC miniature circuit breaker for solar PV, 500 V DC, 3–63 A, 6 kA
On orderSeries: TOB1Z-63
- Rated current
- 3 – 63 A (state rating)
- Rated voltage
- 500 V DC
- Poles
- 1P / 2P
- Breaking capacity
- 6 kA
- Standard
- IEC/EN 60947-2
- Terminal capacity
- Up to 25 mm²
- Genuine product
- Engineer-checked before quoting
- Delivery across Pakistan
Overview
A DC-rated miniature circuit breaker for solar PV strings, battery banks and telecom supplies, where ordinary AC breakers are not suitable. Rated 500 V DC with 6 kA breaking capacity, it protects cables against overload and short circuit. Available in one- and two-pole versions from 3 to 63 A; state the rating on your enquiry.
- DC-rated for PV and battery circuits
- 500 V DC, 6 kA breaking capacity
- 1-pole and 2-pole, 3–63 A
- Terminals up to 25 mm²
Specifications
| Rated current | 3 – 63 A (state rating) |
|---|---|
| Rated voltage | 500 V DC |
| Poles | 1P / 2P |
| Breaking capacity | 6 kA |
| Standard | IEC/EN 60947-2 |
| Terminal capacity | Up to 25 mm² |
