Walther-WerkeOn order
FW110506CC
CEE NEO wall socket, 16 A, 5-pole, 6 h, 400 V, IP54, screwless
- Rated current
- 16 A
- Rated voltage
- 400 V
- Poles
- 5 (3P + N + PE)
Price on request

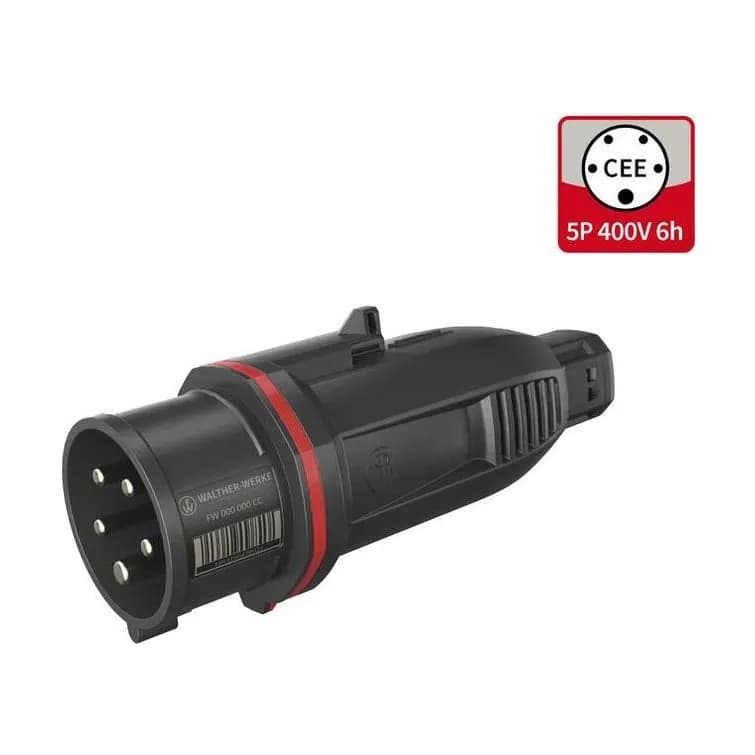

Walther-WerkeFW210506CCCEE NEO One-Touch plug, 16 A, 5-pole, 6 h, 400 V, IP54, screwless
On orderSeries: CEE NEO
- Rated current
- 16 A
- Rated voltage
- 400 V (415 V), 50–60 Hz
- Poles
- 5 (3P + N + PE)
- Connection
- Screwless cage clamp
- Degree of protection
- IP54
- Conductor size
- 1 – 2.5 mm²
- Genuine product
- Engineer-checked before quoting
- Delivery across Pakistan
Overview
A red 16 A five-pole CEE plug for three-phase machines, welders and site equipment. The screwless cage-clamp terminals make connection quick and dependable without retightening, and the automatic strain relief holds the cable firmly. The PA6 housing with a heat-resistant PA66 contact carrier is built for daily industrial use.
- 16 A, 5-pole, 400 V, 6 h, red
- Screwless cage-clamp terminals
- Automatic strain relief
- IP54, PA6 housing
Specifications
| Rated current | 16 A |
|---|---|
| Rated voltage | 400 V (415 V), 50–60 Hz |
| Poles | 5 (3P + N + PE) |
| Connection | Screwless cage clamp |
| Degree of protection | IP54 |
| Conductor size | 1 – 2.5 mm² |
| Earth position | 6 h |
Need installation or integration?
Our engineers can install, program and commission it — Industrial Automation.
