KATKOIsolators with 360° shield connection for motors fed by variable frequency drives.
Price on request — quoted per part number
Quotes within 24 hours on working days
A motor fed by a variable frequency drive needs a screened motor cable, and the screen must be continuous all the way from the drive to the motor. A standard isolator in the middle breaks that screen and lets electrical noise escape, which can disturb sensors, PLCs and communication networks. KATKO's EMC isolators keep the screen continuous with 360° EMC cable glands and a conductive enclosure connection.

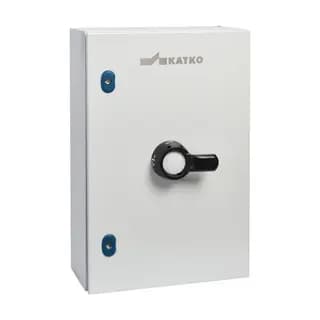

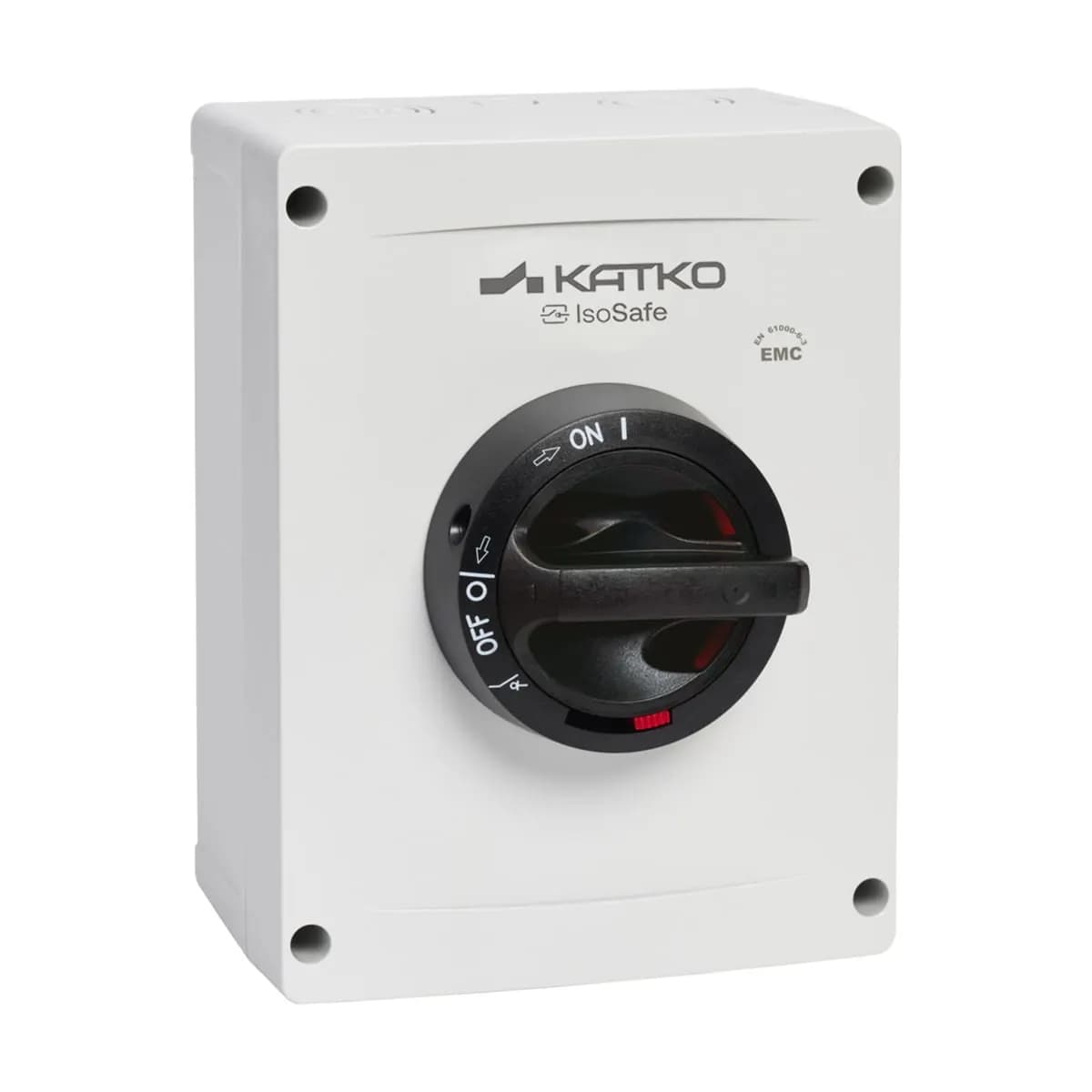

The range covers polycarbonate KEM EMC units for smaller motors and sheet steel KUT EMC units up to 400 A. The code shows poles and current as usual, with EMC marking the shielded version.
If your plant has unexplained sensor faults or network errors on VFD-driven machines, the motor isolators are one of the first things to check. We supply EMC isolators and can review the drive installation on site.
The codes our customers ask for most. Add the ones you need to your quote list — or send any other EMC Isolators for VFD Motors variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|
| KEM 316 M2EMC 2XM20MEMCOrder no. 27265 | 3-pole EMC isolator, 16 A, shielded enclosure, enclosure size M2 | 3P · 16 A | |
| KEM 325 M2EMC 2XM25MEMCOrder no. 27278 | 3-pole EMC isolator, 25 A, shielded enclosure, enclosure size M2 | 3P · 25 A | |
| KEM 332 M3EMC 2XM32MEMCOrder no. 27283 | 3-pole EMC isolator, 32 A, shielded enclosure, enclosure size M3 | 3P · 32 A | |
| KEM 340 M3EMC M32MEMC M25MEMC 31800989Order no. 37127 | 3-pole EMC isolator, 40 A, shielded enclosure, enclosure size M3 | 3P · 40 A | |
| KEM 363 M3EMC 2XM32MEMCOrder no. 32923 | 3-pole EMC isolator, 63 A, shielded enclosure, enclosure size M3 | 3P · 63 A | |
| KEM 380 M3EMC 2XM32MEMCOrder no. 32924 | 3-pole EMC isolator, 80 A, shielded enclosure, enclosure size M3 | 3P · 80 A | |
| KUT 380 1V T5EMC 2XM40MEMC M16MOrder no. 30301 | 3-pole EMC isolator, 80 A, shielded enclosure, enclosure size T5 | 3P · 80 A | |
| KUT 3125 1V T5EMC 2XM40MEMC M16MOrder no. 30302 | 3-pole EMC isolator, 125 A, shielded enclosure, enclosure size T5 | 3P · 125 A | |
| KUT 3160 1V T5EMC 2XM40MEMC M16MOrder no. 37273 | 3-pole EMC isolator, 160 A, shielded enclosure, enclosure size T5 | 3P · 160 A | |
| KUT 3200 1V T6EMC 2XM50MEMC M16MOrder no. 30304 | 3-pole EMC isolator, 200 A, shielded enclosure, enclosure size T6 | 3P · 200 A | |
| KUT 3250 1V T6EMC 2XM50MEMC M16MOrder no. 30305 | 3-pole EMC isolator, 250 A, shielded enclosure, enclosure size T6 | 3P · 250 A | |
| KUT 3400 1V T7EMC 2XM75MEMC M16MOrder no. 36515 | 3-pole EMC isolator, 400 A, shielded enclosure, enclosure size T7 | 3P · 400 A |
Send a photo of the KATKO part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
KATKO EMC Isolators for VFD Motors prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Isolation without breaking the motor cable screen.
Local isolation on drive-controlled conveyors.
Avoiding interference with sensors, PLCs and networks.
RO and mineral-water plants with filling-line coding and automation.
Explore
Hygienic automation, coding and water systems for high-speed food and beverage lines.
Explore
Drives, controls and energy savings for spinning, weaving and processing mills.
Explore
Robust instrumentation, drives and safety systems for demanding processes.
ExploreMore from KATKO
12 part numbersKATKO IsoSafe KEM enclosed isolators (safety switches) in polycarbonate enclosures: 3 and 4-pole load-break switches from 10 A to 250 A for local isolation of motors, pumps and machines, indoors and outdoors.
12 part numbersKATKO IsoSafe KER stainless steel enclosed isolators in AISI 304 and 316L, 3 and 4-pole from 16 A to 630 A, for hygienic and corrosive environments with frequent wash-down.
12 part numbersKATKO IsoSafe KEA aluminium enclosed isolators, 3 and 4-pole from 16 A to 250 A, with weather, UV and impact-resistant enclosures for outdoor and heavy industrial use.

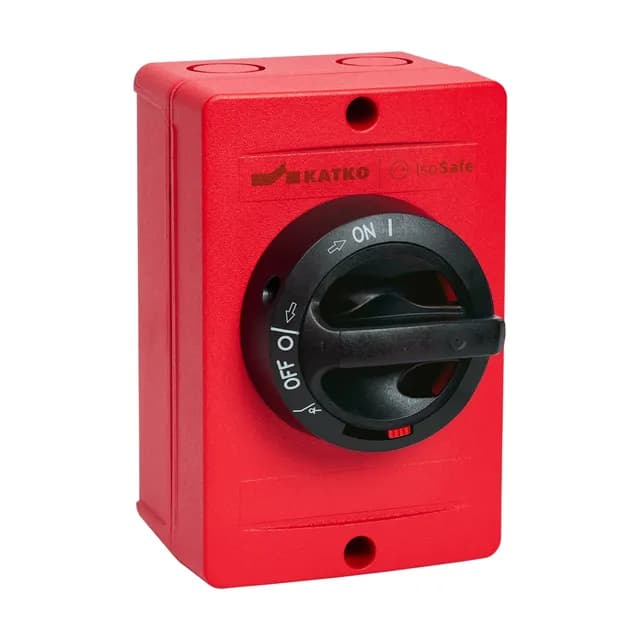

10 part numbersKATKO IsoSafe fire-rated KEA FR isolators, 3 and 4-pole from 16 A to 200 A, for smoke-extraction fans, fire pumps and other fire-safety equipment.

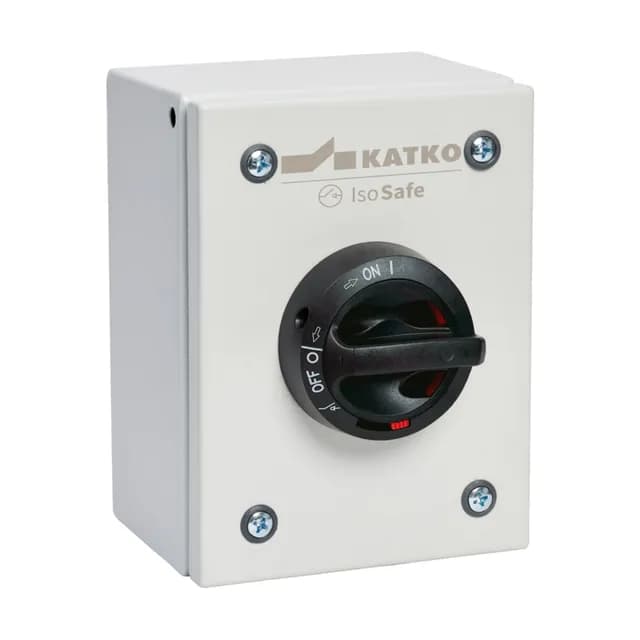

12 part numbersKATKO IsoSafe KET sheet steel enclosed isolators, 3-pole from 10 A to 250 A, for demanding industrial applications where mechanical strength matters.

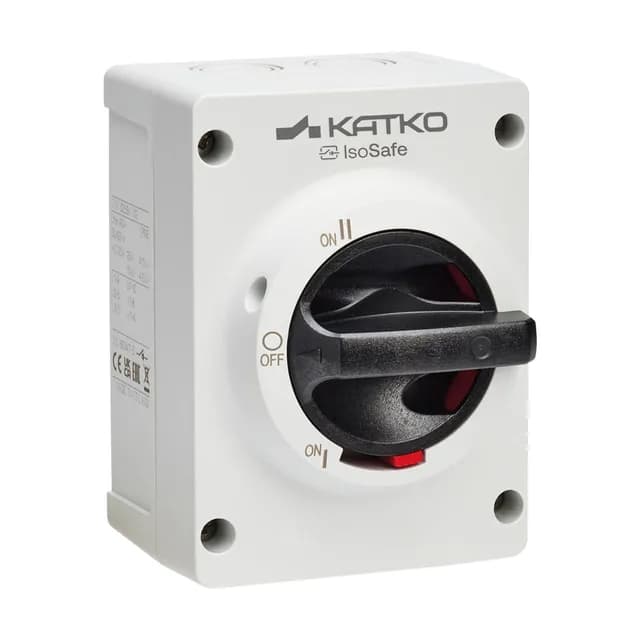

9 part numbersKATKO enclosed changeover switches (TKM) for manual switching between two supplies — mains and generator — in 1 to 4-pole versions from 16 A to 40 A.
FAQs
If the motor cable is screened (as it should be with a VFD), an EMC isolator keeps the screen continuous. A standard isolator breaks it and can cause interference.
Yes, they work as normal isolators too, but their benefit is in drive circuits.
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
The table shows the codes we are asked for most; we offer the other EMC Isolators for VFD Motors variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Yes. We offer genuine KATKO products only — no copies, and no substitutes without your approval.
