PilzCompact multi-function safety relays with contact expansions and two-hand control.
Price on request — quoted per part number
Quotes within 24 hours on working days
PNOZsigma is Pilz's compact safety relay family: narrow housings, plug-in terminals and the option to link a base unit with contact expansion modules through a connector, without extra wiring. It suits new machines and panels where space is short.
The PNOZ s4 is the workhorse for E-stop, gate and light-curtain monitoring with 3 safety contacts; the s3 is the compact 2-contact version. PNOZ s5 and s9 add delayed contacts for controlled stops of drives; PNOZ s6 monitors two-hand control stations on presses. PNOZ s7, s8, s10 and s11 expand the number of safety contacts. Versions for 48–240 V AC/DC supply are available.
We supply PNOZsigma units and accessories. Send the article number (75xxxx) or describe the safety function and we recommend the configuration.
The codes our customers ask for most. Add the ones you need to your quote list — or send any other PNOZsigma Safety Relays variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|

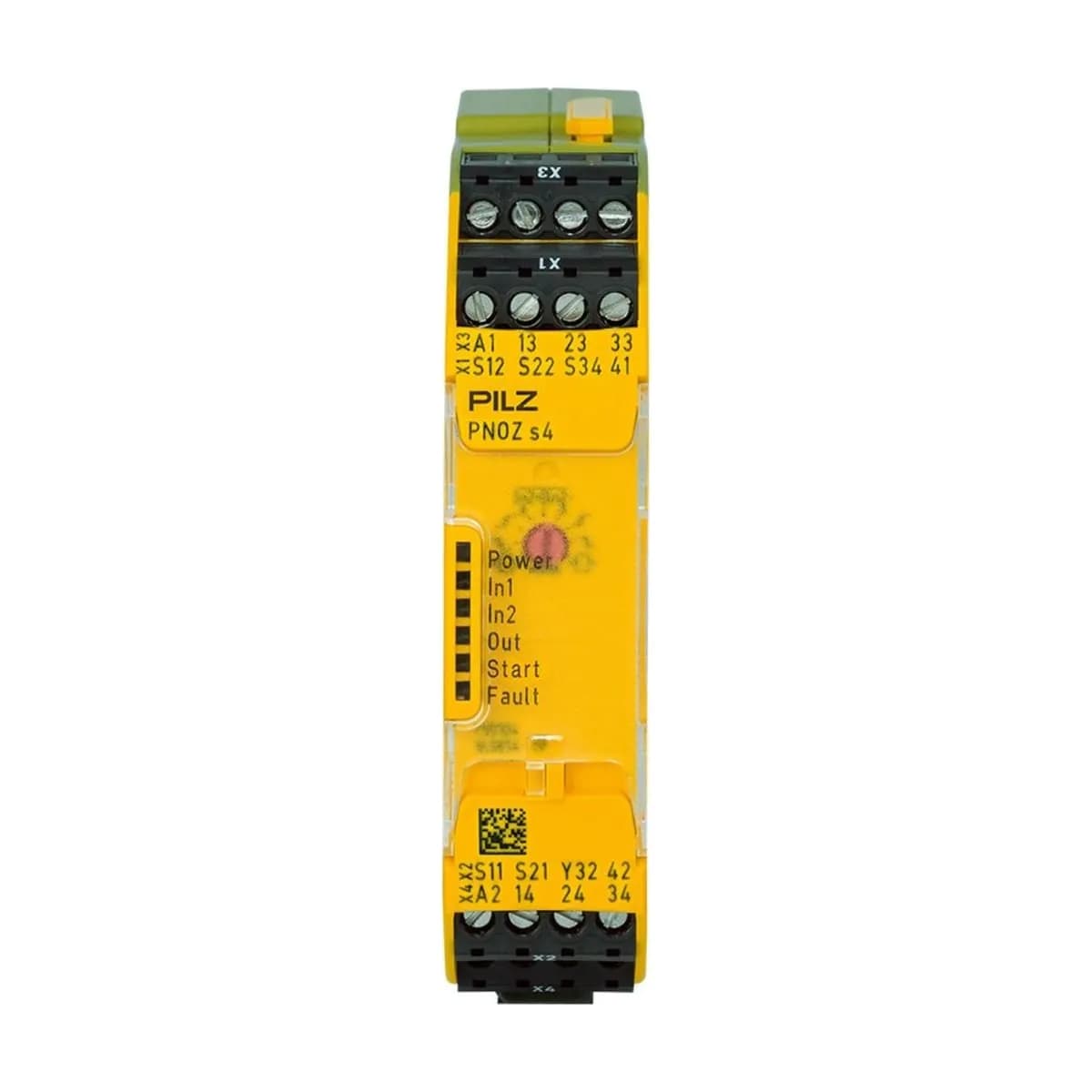

| 750104 | PNOZ s4, 24 V DC, 3 N/O + 1 N/C — E-stop, gates, light curtains | PNOZ s4 | |
| 750134 | PNOZ s4, 48–240 V AC/DC, 3 N/O + 1 N/C | PNOZ s4 AC/DC | |
| 750103 | PNOZ s3, 24 V DC, 2 N/O | PNOZ s3 | |
| 750105 | PNOZ s5, 24 V DC, 2 N/O + 2 N/O time-delayed | PNOZ s5 | |
| 750109 | PNOZ s9, 24 V DC, 3 N/O delayed + 1 N/C delayed | PNOZ s9 | |
| 750106 | PNOZ s6, 24 V DC, 3 N/O + 1 N/C — two-hand control | PNOZ s6 | |
| 750136 | PNOZ s6, 48–240 V AC/DC, two-hand control | PNOZ s6 AC/DC | |
| 750107 | PNOZ s7 contact expansion, 24 V DC, 4 N/O + 1 N/C | PNOZ s7 | |
| 750108 | PNOZ s8 contact expansion, 24 V DC, 2 N/O | PNOZ s8 | |

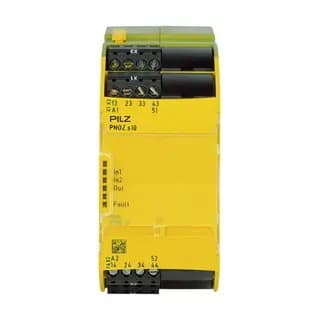

| 750110 | PNOZ s10 contact expansion, 24 V DC, 4 N/O + 1 N/C | PNOZ s10 | |
| 750111 | PNOZ s11 contact expansion, 24 V DC, 8 N/O + 1 N/C | PNOZ s11 |
Send a photo of the Pilz part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
Pilz PNOZsigma Safety Relays prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Safety functions where panel space is limited.
Two-hand control monitoring with PNOZ s6.
Delayed safety contacts for stop category 1.
More from Pilz
13 part numbersPilz PNOZ X safety relays for monitoring emergency-stop buttons, safety gates and light curtains: PNOZ X1, X2, X2.8P, X3, X4 and X11P with N/O safety contacts, plus PZE X4P contact expansion.
7 part numbersPilz PNOZmulti 2 configurable safety systems: PNOZ m B0 and B1 base units configured with PNOZmulti Configurator, plus safe I/O and Ethernet communication modules.
6 part numbersPilz PSEN safety switches for guard-door monitoring: PSENmag magnetic switches, PSENcode coded non-contact switches and PSENmech mechanical switches with guard locking.
FAQs
Both perform the same safety functions. PNOZsigma units are more compact and can be expanded with plug-on contact modules; PNOZ X is the established classic range.
PNOZ s6 (750106 for 24 V DC, 750136 for 48–240 V AC/DC).
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
The table shows the codes we are asked for most; we offer the other PNOZsigma Safety Relays variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Yes. We offer genuine Pilz products only — no copies, and no substitutes without your approval.
