Schneider ElectricSchneider Electric Acti9 iC60N MCBs
Miniature circuit breakers from 6 A to 63 A, 1 to 4 poles, C curve.
- Acti9
- iC60N
- A9F44
- A9F74
- Standard-duty iC60N, C curve
- 1, 2, 3 and 4-pole versions
- 6 A to 63 A
- iC60H/iC60L available for higher fault levels
- Busbar and auxiliary accessories
Price on request — quoted per part number
Quotes within 24 hours on working days
- Genuine products onlyNo copies, no substitutes without your approval.
- Itemised quotationsClear prices, lead times and terms for every line.
- Engineer-checkedWe confirm the right part for your application.
- Delivery across PakistanDispatched to your plant, wherever it is.

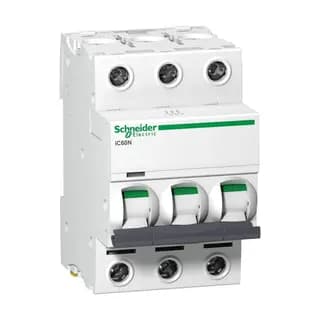

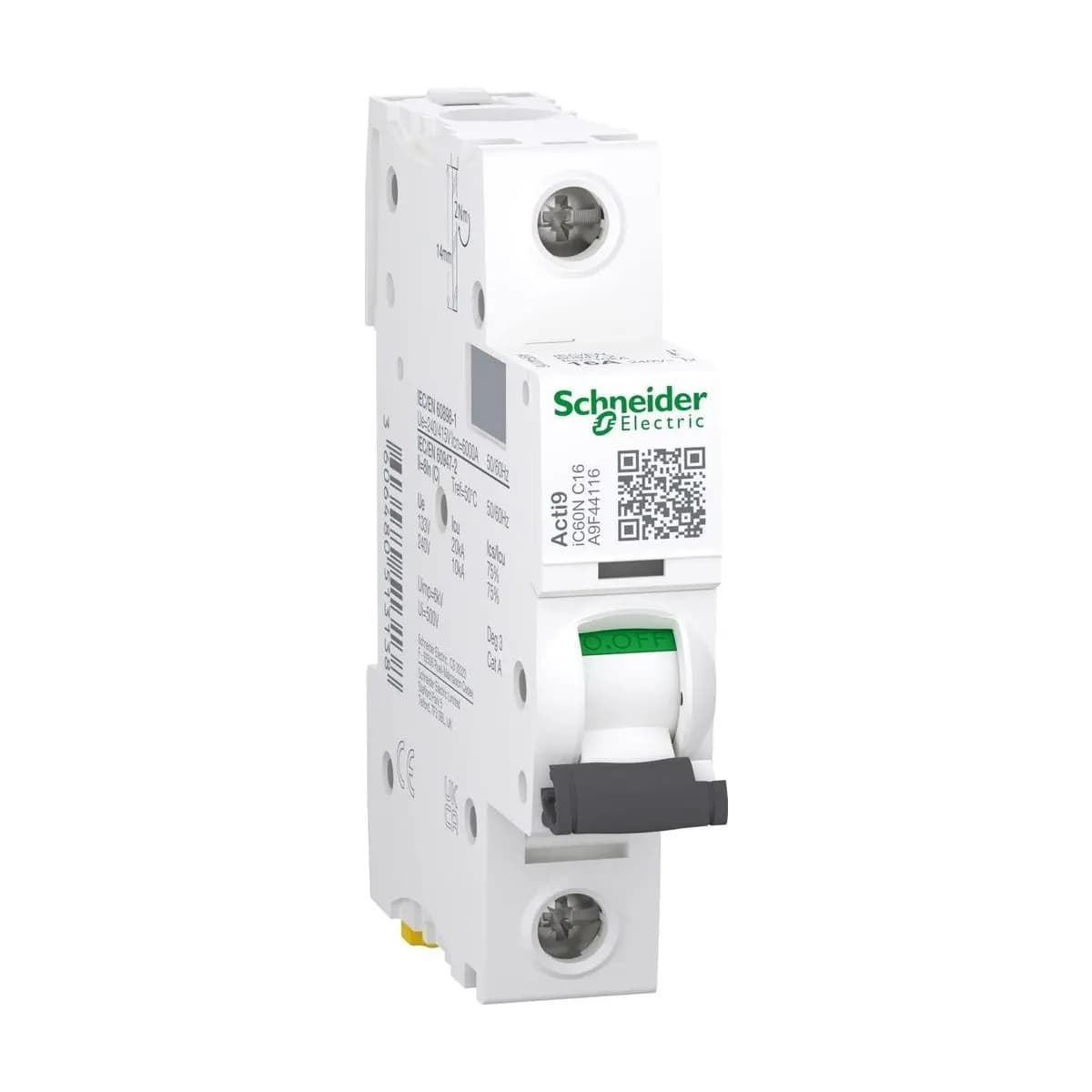

About the Schneider Electric Acti9 iC60N MCBs
Acti9 iC60N breakers protect cables and loads in distribution boards and control panels, and they are one of the most specified MCB ranges in commercial and industrial buildings. The iC60N is the standard-duty version; the iC60H and iC60L variants offer higher breaking capacity where the fault level demands it.
In this region the iC60N is sold under A9F44 references. The code is simple: A9F44 + number of poles + rated current, so A9F44116 is a 1-pole 16 A C-curve breaker and A9F44332 a 3-pole 32 A. Many drawings and older boards still show the European A9F74 references for the same breaker type; send either code and we quote the right one.
We supply single breakers for maintenance and full sets for new boards, together with busbars and auxiliaries. Tell us the poles and current, or send a photo of the board.
Range at a glance
- Range
- Acti9 iC60N
- Curve
- C
- Rated current
- 6 A to 63 A
- Poles
- 1P, 2P, 3P, 4P
- References
- A9F44… (regional), A9F74… (European)
Schneider Electric Acti9 iC60N MCBs part numbers
The codes our customers ask for most. Add the ones you need to your quote list — or send any other Acti9 iC60N MCBs variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|
| A9F44106 | iC60N MCB 1P, 6 A, C curve | 1P · C6 | |
| A9F44110 | iC60N MCB 1P, 10 A, C curve | 1P · C10 | |
| A9F44116 | iC60N MCB 1P, 16 A, C curve | 1P · C16 | |
| A9F44120 | iC60N MCB 1P, 20 A, C curve | 1P · C20 | |
| A9F44125 | iC60N MCB 1P, 25 A, C curve | 1P · C25 | |
| A9F44132 | iC60N MCB 1P, 32 A, C curve | 1P · C32 | |
| A9F44140 | iC60N MCB 1P, 40 A, C curve | 1P · C40 | |
| A9F44150 | iC60N MCB 1P, 50 A, C curve | 1P · C50 | |
| A9F44163 | iC60N MCB 1P, 63 A, C curve | 1P · C63 | |
| A9F44206 | iC60N MCB 2P, 6 A, C curve | 2P · C6 | |
| A9F44216 | iC60N MCB 2P, 16 A, C curve | 2P · C16 | |
| A9F44232 | iC60N MCB 2P, 32 A, C curve | 2P · C32 | |
| A9F44306 | iC60N MCB 3P, 6 A, C curve | 3P · C6 | |
| A9F44316 | iC60N MCB 3P, 16 A, C curve | 3P · C16 | |
| A9F44332 | iC60N MCB 3P, 32 A, C curve | 3P · C32 | |
| A9F44363 | iC60N MCB 3P, 63 A, C curve | 3P · C63 | |
| A9F44416 | iC60N MCB 4P, 16 A, C curve | 4P · C16 |
Not sure of the part number?
Send a photo of the Schneider Electric part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
Schneider Electric Acti9 iC60N MCBs price in Pakistan
Schneider Electric Acti9 iC60N MCBs prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Where the Acti9 iC60N MCBs is used
Distribution boards
Final circuits for lighting, sockets and small power.
Control panels
Protection of control transformers and auxiliary circuits.
Commercial buildings
Offices, warehouses and plant buildings.
Industries that run on it
Engineering support for the Acti9 iC60N MCBs
More from Schneider Electric
Other Schneider Electric ranges
- 14 part numbers
12 part numbersAltivar Machine ATV320 Drives
Schneider Electric Altivar Machine ATV320 variable speed drives, compact format: 1-phase 200–240 V from 0.37 to 2.2 kW and 3-phase 380–500 V from 0.75 to 15 kW, for packaging, handling and process machines.
- ATV320
- Altivar Machine
- ATV320…N4C
- ATV320…M2C
13 part numbersTeSys LRD Thermal Overload Relays
Schneider Electric TeSys LRD thermal overload relays, class 10A, with setting ranges from 1 A to 65 A, mounting directly under TeSys D contactors for motor overload and phase-loss protection.
- TeSys LRD
- LRD
- LRD3
12 part numbersTeSys GV2 Motor Circuit Breakers
Schneider Electric TeSys GV2ME thermal-magnetic motor circuit breakers (MPCB), 3-pole, adjustable from 0.63 A to 32 A, for motor protection without fuses, with GVAE auxiliary contacts.
- TeSys GV2
- GV2ME
- GVAE11
9 part numbersAltivar Easy ATV310 Drives
Schneider Electric Altivar Easy ATV310 variable speed drives for 3-phase 380–460 V motors from 0.75 kW to 15 kW — simple, robust drives for pumps, fans, conveyors and mixers.
- ATV310
- Altivar Easy 310
- ATV310H…N4E
12 part numbersHarmony XB5 & XB4 Push Buttons
Schneider Electric Harmony XB5 (plastic) and XB4 (metal) Ø22 mm control units: flush push buttons, emergency stops, selector switches and LED pilot lights for control panels and machines.
- Harmony XB5
- Harmony XB4
- XB5A
- XB4B
FAQs
Frequently asked questions
Is A9F44116 the same as A9F74116?
Both are Acti9 iC60N 1-pole 16 A C-curve breakers; A9F44 is the reference used in this region and A9F74 the European one. We quote the reference that is currently available.
iC60N, iC60H or iC60L?
iC60N is standard duty. iC60H and iC60L have higher breaking capacity for boards close to large transformers. Send the prospective fault level and we check.
What is the price of Schneider Electric Acti9 iC60N MCBs in Pakistan?
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
My Schneider Electric part number is not in the table. Can you offer it?
The table shows the codes we are asked for most; we offer the other Acti9 iC60N MCBs variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Are these genuine Schneider Electric products?
Yes. We offer genuine Schneider Electric products only — no copies, and no substitutes without your approval.
