SICKM8 to M30 inductive sensors for metal detection — flush, non-flush, PNP and NPN.
Price on request — quoted per part number
Quotes within 24 hours on working days
Inductive proximity sensors detect metal without contact, and the SICK IME is one of the most widely fitted ranges on machines in Pakistan. The housing size sets the sensing range: an M8 senses 2–4 mm, an M12 4–8 mm, an M18 8–12 mm and an M30 10–20 mm. Flush ("B") sensors can be mounted level with the steel around them; non-flush ("N") types sense further but need free space around the face.

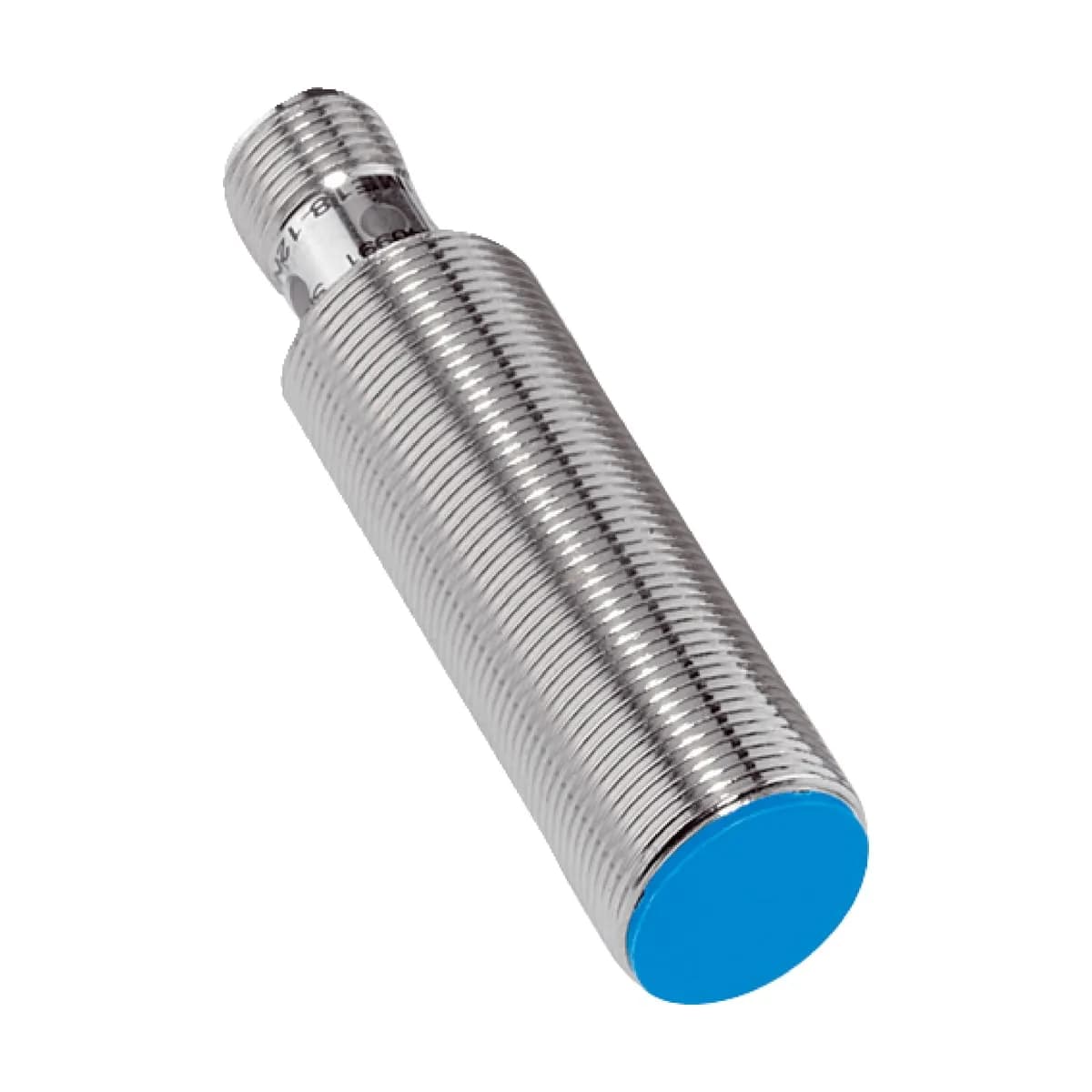

The type code tells you the rest. In IME18-08BPSZC0S, 18 is the thread, 08 the sensing range in mm, B flush, P PNP, S normally open, and C0 an M12 connector; a "K" ending marks the short-body housing. The 7-digit number is the SICK order number printed on the label.
We supply IME sensors for new machines and as direct replacements. If the label is worn, send us the thread size, sensing distance, output type and connection, and we match it.
The codes our customers ask for most. Add the ones you need to your quote list — or send any other IME Inductive Proximity Sensors variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|
| IME12-04BPSZC0SOrder no. 1040764 | M12 inductive sensor, 4 mm flush, PNP NO, M12 4-pin connector | Sn 4 mm · PNP | |
| IME18-08BPSZC0SOrder no. 1040966 | M18 inductive sensor, 8 mm flush, PNP NO, M12 4-pin connector | Sn 8 mm · PNP | |
| IME08-04BPSZT0SOrder no. 1086325 | M8 inductive sensor, 4 mm quasi-flush, PNP NO, M8 3-pin connector | Sn 4 mm · PNP | |
| IME12-04BPSZC0KOrder no. 1040763 | M12 short-body inductive sensor, 4 mm flush, PNP NO, M12 4-pin connector | Sn 4 mm · PNP | |
| IME30-15BPSZC0SOrder no. 1041030 | M30 inductive sensor, 15 mm flush, PNP NO, M12 4-pin connector | Sn 15 mm · PNP | |
| IME18-08BPSZC0KOrder no. 1040965 | M18 short-body inductive sensor, 8 mm flush, PNP NO, M12 4-pin connector | Sn 8 mm · PNP | |
| IME08-02BPSZT0SOrder no. 1040870 | M8 inductive sensor, 2 mm flush, PNP NO, M8 3-pin connector | Sn 2 mm · PNP | |
| IME18-12BPSZC0KOrder no. 1071252 | M18 short-body inductive sensor, 12 mm quasi-flush, PNP NO, M12 4-pin connector | Sn 12 mm · PNP | |
| IME12-08NPSZC0SOrder no. 1040780 | M12 inductive sensor, 8 mm non-flush, PNP NO, M12 4-pin connector | Sn 8 mm · PNP | |
| IME30-15BPOZW2SOrder no. 1041036 | M30 inductive sensor, 15 mm flush, PNP NC, 2 m cable | Sn 15 mm · PNP | |
| IME18-12BPOZC0SOrder no. 1071261 | M18 inductive sensor, 12 mm quasi-flush, PNP NC, M12 4-pin connector | Sn 12 mm · PNP | |
| IME12-04BPOZC0SOrder no. 1040768 | M12 inductive sensor, 4 mm flush, PNP NC, M12 4-pin connector | Sn 4 mm · PNP |
Send a photo of the SICK part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
SICK IME Inductive Proximity Sensors prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Detecting cylinder ends, cams, gates and machine parts in motion.
Sensing sprocket teeth, shaft collars and metal products on conveyors.
Confirming caps, cans and metal components before the next process step.
Coding, labeling and end-of-line automation for faster, error-free packing.
Explore
RO and mineral-water plants with filling-line coding and automation.
Explore
Hygienic automation, coding and water systems for high-speed food and beverage lines.
Explore
Drives, controls and energy savings for spinning, weaving and processing mills.
ExploreMore from SICK
10 part numbersSICK G6 small photoelectric sensors, led by the GL6 retro-reflective range: 6 m sensing with a reflector (12 m on GL6L), PNP or NPN, M8 connector or cable — a low-cost standard for conveyors.
10 part numbersSICK W12 photoelectric sensors in a robust metal housing: background-suppression (WTB12), foreground-suppression (WTF12), retro-reflective (WL12) and through-beam versions for demanding production lines.
8 part numbersSICK KTS contrast sensors detect print marks and register marks on film, labels and packaging at high speed — used on flow wrappers, label machines and form-fill-seal machines.
10 part numbersSICK WF, WFS and WFE fork sensors for label-gap detection and small-part detection, with fork widths from 2 mm to 180 mm and pre-aligned sender and receiver in one housing.
8 part numbersSICK MZT8 magnetic cylinder sensors for T-slot pneumatic cylinders: drop-in mounting, NO or NC outputs, M8/M12 pigtail or open cable connection.
10 part numbersSICK DFS60 incremental encoders: 60 mm housing, solid, blind-hollow and through-hollow shafts, TTL/HTL outputs and up to 65,536 pulses — programmable versions cover many resolutions with one part.
FAQs
M18 thread, 8 mm sensing range, flush mounting (B), PNP output (P), normally open (S), M12 connector (C0), standard length. 1040966 is its SICK order number.
Only if the PLC input is changed to match. Check whether your inputs are sinking or sourcing — or send us the old sensor's code and we supply the same output type.
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
The table shows the codes we are asked for most; we offer the other IME Inductive Proximity Sensors variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Yes. We offer genuine SICK products only — no copies, and no substitutes without your approval.
