SICKSICK KTS Contrast Sensors
Print-mark and register sensors for packaging film, labels and cartons.
- KTS
- KTS-WB
- KTX
- White LED for low-contrast and shiny materials
- 13, 25 and 40 mm sensing distances
- Easy Teach one-button setup
- IO-Link versions for recipe storage
- Push-pull PNP/NPN outputs
Price on request — quoted per part number
Quotes within 24 hours on working days
- Genuine products onlyNo copies, no substitutes without your approval.
- Itemised quotationsClear prices, lead times and terms for every line.
- Engineer-checkedWe confirm the right part for your application.
- Delivery across PakistanDispatched to your plant, wherever it is.

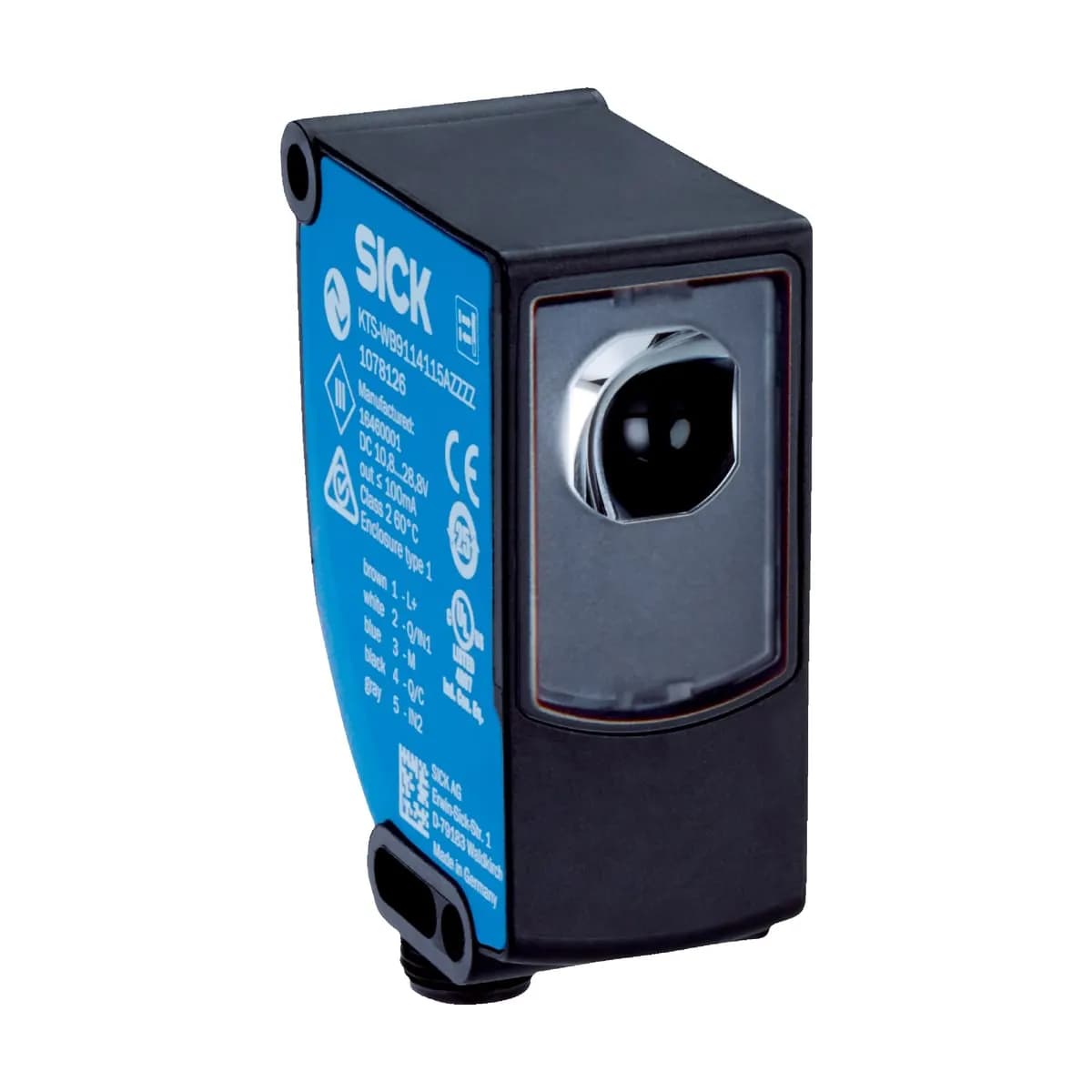

About the SICK KTS Contrast Sensors
Contrast sensors read the small printed marks on packaging film and labels so the machine cuts, seals or prints in exactly the right place. The SICK KTS is the current standard: a white LED light source detects even low-contrast marks on shiny, metallised or transparent film, and a teach button sets the sensor to a new material in seconds.
Choose the sensing distance (13 mm for most machines, 25 or 40 mm where the sensor sits further from the web) and the light-spot direction to match the mark. "Easy Teach" versions are set with a single button press; IO-Link versions let the PLC store settings per product, which is useful on machines that change film often.
We supply KTS sensors for new machines and as replacements for older KT5 or KT10 contrast sensors. Send the old type code and the mark size and we recommend the right KTS.
Range at a glance
- Sensing distance
- 13 mm, 25 mm or 40 mm
- Light source
- LED (white)
- Setup
- Teach-in button; IO-Link on selected types
- Outputs
- Push-pull PNP/NPN
- Typical materials
- Film, labels, paper, metallised foil
SICK KTS Contrast Sensors part numbers
The codes our customers ask for most. Add the ones you need to your quote list — or send any other KTS Contrast Sensors variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|
| KTS-WB94141152ZZZZOrder no. 1218201 | Contrast sensor, Standard, 13 mm sensing distance, round light spot, no IO-Link | 13 mm · PNP/NPN | |
| KTS-WB41141142ZZZZOrder no. 1218200 | Contrast sensor, Easy Teach, 13 mm sensing distance, vertical light spot, no IO-Link | 13 mm · PNP/NPN | |
| KTS-WB91141152ZZZZOrder no. 1078122 | Contrast sensor, Standard, 13 mm sensing distance, vertical light spot, no IO-Link | 13 mm · PNP/NPN | |
| KTS-WB9114115AZZZZOrder no. 1078126 | Contrast sensor, Standard, 13 mm sensing distance, vertical light spot, IO-Link | 13 mm · PNP/NPN | |
| KTS-WS41141142ZZZZOrder no. 1221031 | Contrast sensor, Easy Teach, 13 mm sensing distance, vertical light spot, no IO-Link | 13 mm · PNP/NPN | |
| KTS-WB9134115AZZZZOrder no. 1220673 | Contrast sensor, Standard, 40 mm sensing distance, vertical light spot, IO-Link | 40 mm · PNP/NPN | |
| KTS-WB9114115UZZZZOrder no. 1084194 | Contrast sensor, Standard, 13 mm sensing distance, vertical light spot, no IO-Link | 13 mm · PNP/NPN | |
| KTS-WB9224115AZZZZOrder no. 1078129 | Contrast sensor, Standard, 25 mm sensing distance, horizontal light spot, IO-Link | 25 mm · PNP/NPN |
Not sure of the part number?
Send a photo of the SICK part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
SICK KTS Contrast Sensors price in Pakistan
SICK KTS Contrast Sensors prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Where the KTS Contrast Sensors is used
Flow wrappers
Cut-to-register for biscuits, confectionery and snack packs.
Form-fill-seal machines
Print-mark detection on pouch and sachet film.
Labelling
Label gap and mark detection on labelling machines.
Industries that run on it
Food & Beverage
Hygienic automation, coding and water systems for high-speed food and beverage lines.
Explore
FMCG
Flexible lines, accurate coding and dependable spares for fast-moving production.
Explore
Packaging
Coding, labeling and end-of-line automation for faster, error-free packing.
Explore
Pharmaceutical
Precise coding, controlled automation and clean utilities for regulated production.
Explore
Engineering support for the KTS Contrast Sensors
More from SICK
Other SICK ranges
- 12 part numbers
10 part numbersG6 Small Photoelectric Sensors
SICK G6 small photoelectric sensors, led by the GL6 retro-reflective range: 6 m sensing with a reflector (12 m on GL6L), PNP or NPN, M8 connector or cable — a low-cost standard for conveyors.
- GL6
- GL6G
- GL6L
- G6
10 part numbersW12 Photoelectric Sensors
SICK W12 photoelectric sensors in a robust metal housing: background-suppression (WTB12), foreground-suppression (WTF12), retro-reflective (WL12) and through-beam versions for demanding production lines.
- W12
- WTB12
- WTF12
- WL12

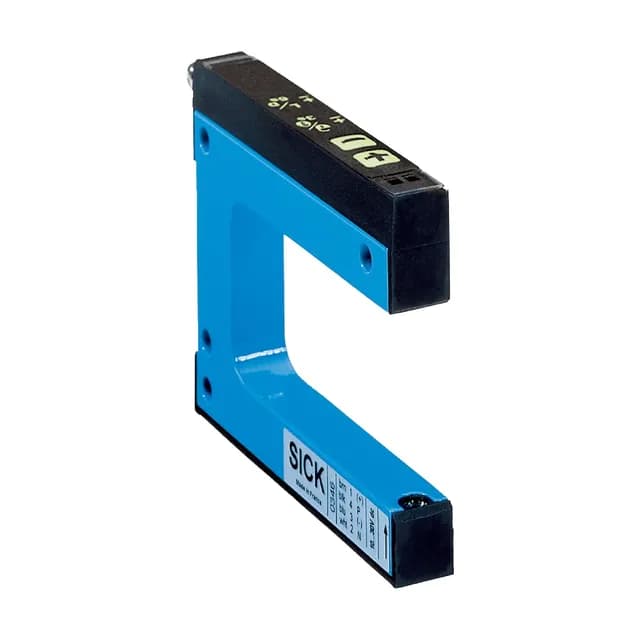

10 part numbersWF Fork Sensors
SICK WF, WFS and WFE fork sensors for label-gap detection and small-part detection, with fork widths from 2 mm to 180 mm and pre-aligned sender and receiver in one housing.
- WF
- WFS
- WFE

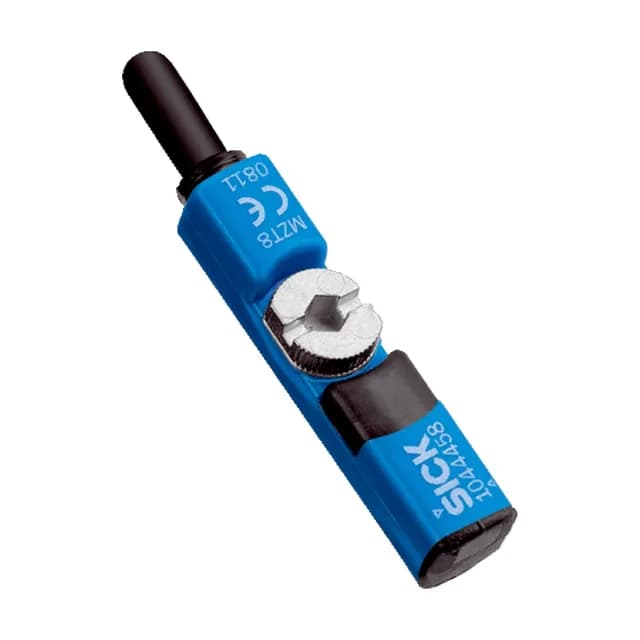

8 part numbersMZT8 Magnetic Cylinder Sensors
SICK MZT8 magnetic cylinder sensors for T-slot pneumatic cylinders: drop-in mounting, NO or NC outputs, M8/M12 pigtail or open cable connection.
- MZT8
- MZT8-03VPS

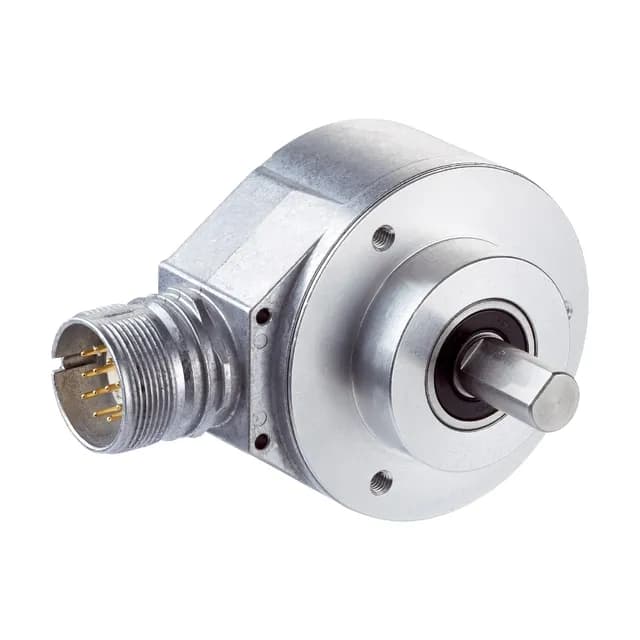

10 part numbersDFS60 Incremental Encoders
SICK DFS60 incremental encoders: 60 mm housing, solid, blind-hollow and through-hollow shafts, TTL/HTL outputs and up to 65,536 pulses — programmable versions cover many resolutions with one part.
- DFS60
- DFS60B
- DFS60E
- DFS60I
FAQs
Frequently asked questions
Can a KTS replace my old KT5 sensor?
In most cases yes. The mounting and connection may differ, so send us the old type code and a photo of the installation and we confirm the right KTS and bracket.
What is the difference between Easy Teach and Standard?
Easy Teach versions are set with a simple one-button teach and suit most machines. Standard versions offer more setting options, and IO-Link versions let the PLC store and load settings.
What is the price of SICK KTS Contrast Sensors in Pakistan?
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
My SICK part number is not in the table. Can you offer it?
The table shows the codes we are asked for most; we offer the other KTS Contrast Sensors variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Are these genuine SICK products?
Yes. We offer genuine SICK products only — no copies, and no substitutes without your approval.
