TOMZNDC MCBs, PV fuse holders, DC MCCBs and combiner boxes for solar installations.
Price on request — quoted per part number
Quotes within 24 hours on working days
Solar installations need protection designed for direct current. DC arcs do not extinguish themselves like AC arcs, so AC breakers and fuse holders are not safe on the PV side. TOMZN's PV range covers the DC protection of a typical commercial or residential solar system.
The TOB1Z-63 is a DC miniature circuit breaker rated up to 500 V DC and 63 A. TOPV-30 and TOPV-32 fuse holders take 10×38 mm gPV string fuses at up to 1000/1100 V DC. The TOM7Z DC MCCB covers larger currents up to 125 A, and ready-made combiner boxes integrate breakers, fuses and surge protection in a weatherproof enclosure.
PV protection must match the string voltage and current. Send us the panel and inverter data and we specify the breakers, fuses and surge protection — or design and install the complete solar system.
The codes our customers ask for most. Add the ones you need to your quote list — or send any other Solar PV DC Protection variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|
| TOB1Z-63 | DC miniature circuit breaker for PV, 500 V DC, 3–63 A, 6 kA | DC MCB | |
| TOPV-30 | PV fuse holder, 1P/2P, 10×38 mm, up to 1000 V DC | Fuse holder 1000 V | |

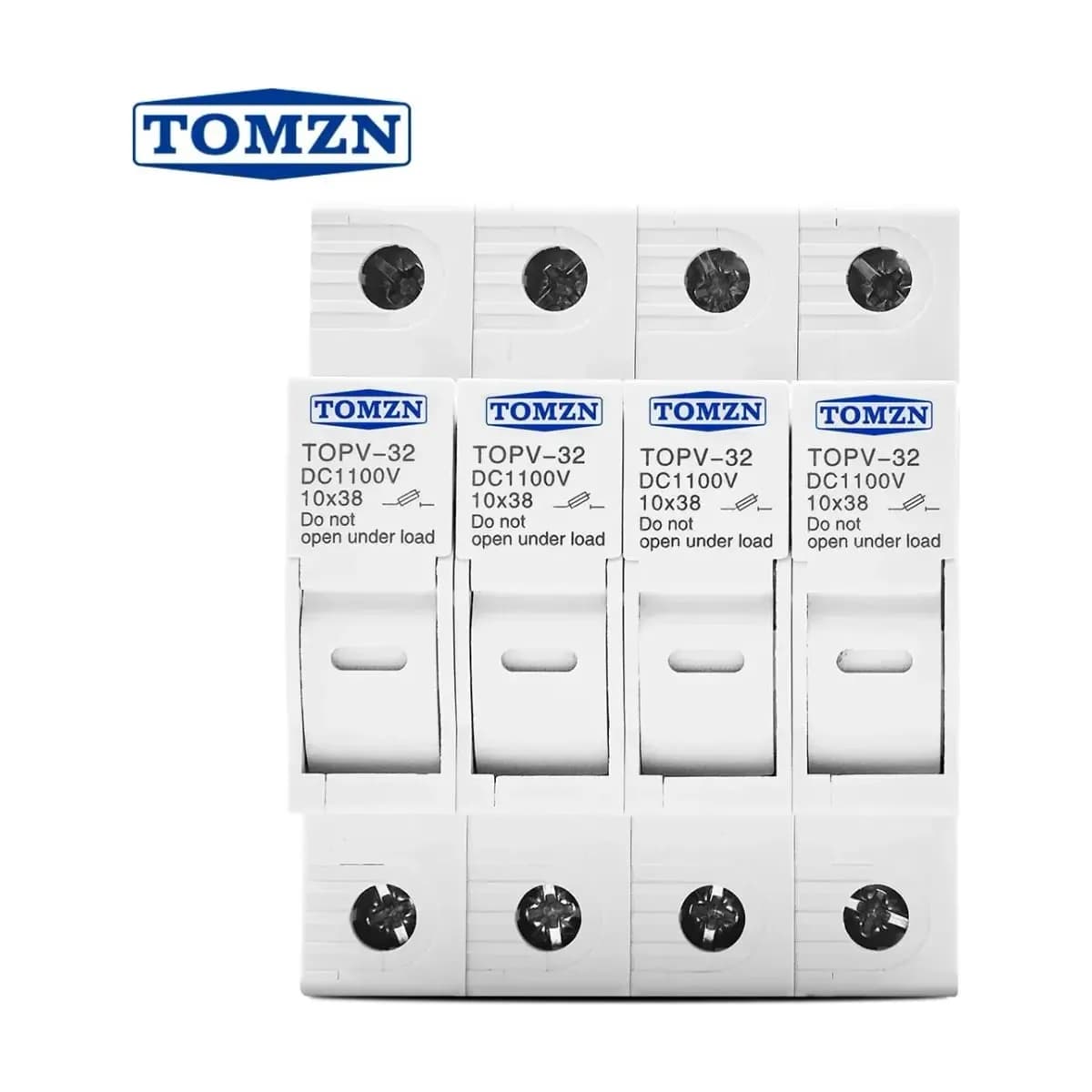

| TOPV-32 | PV fuse holder, 4P, 10×38 mm, up to 1100 V DC | Fuse holder 4P | |
| TOPV-32X | PV fuse holder, 3P, 10×38 mm, up to 1100 V DC | Fuse holder 3P | |
| TOM7Z | DC MCCB, 2P, 100–125 A, for PV systems | DC MCCB | |

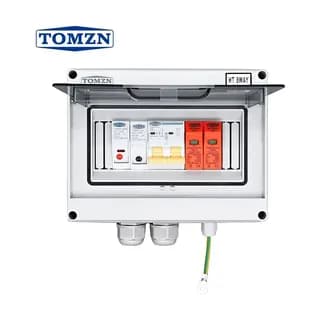

| TOV1-PV | PV combiner box, 2P 600 V DC, 16–63 A, with MCB, fuse and SPD | Combiner box |
Send a photo of the TOMZN part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
TOMZN Solar PV DC Protection prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
String and array protection on commercial and residential systems.
DC protection on solar water pumps.
DC breakers for battery and inverter connections.
More from TOMZN
8 part numbersTOMZN voltage protectors: DIN-rail TOVPD1 single-phase and TOVPD3 three-phase protectors with adjustable over-voltage, under-voltage and over-current trip points, plus plug-in TOVS and TOSVA socket protectors.
8 part numbersTOMZN dual-power automatic transfer switches (ATS) for automatic changeover between mains and generator: DIN-rail TOQ6 and TOQ9 (63 A), three-phase TOQ7, and MCB-type TOQ3 and TOQ1M up to 125 A.
6 part numbersTOMZN smart Wi-Fi circuit breakers and protectors (Tuya / Smart Life app): remote on/off, timers, voltage and current metering and protection, single-phase and three-phase, up to 100 A.

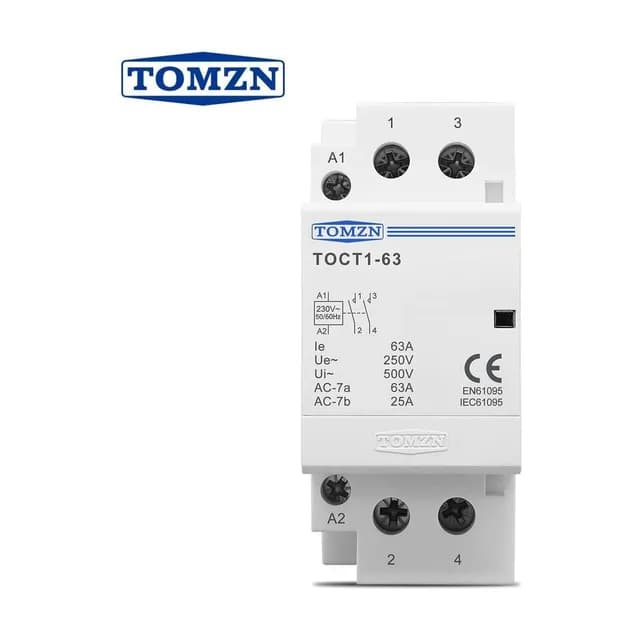

9 part numbersTOMZN DIN-rail modular devices: TOCT1 modular contactors (16–100 A), TORT7 time relays, Bluetooth TOS timer switches, TOB1-63 MCBs, TOB7L RCCBs and TOB6L-63H AFDD/RCBO.
FAQs
No. DC arcs need breakers rated for DC voltage. Use DC MCBs such as the TOB1Z-63 on the PV side.
It depends on the module's short-circuit current and series fuse rating. Send the panel datasheet and we specify it.
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
The table shows the codes we are asked for most; we offer the other Solar PV DC Protection variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Yes. We offer genuine TOMZN products only — no copies, and no substitutes without your approval.
