TOMZNOver- and under-voltage protectors for homes, shops and machines — DIN-rail and plug-in.
Price on request — quoted per part number
Quotes within 24 hours on working days
Voltage swings are a daily fact in Pakistan: low voltage at peak hours, high voltage at night and surges when supply returns after load-shedding. Air conditioners, fridges, pumps and machines suffer most. A voltage protector cuts the supply when the voltage goes outside safe limits and reconnects automatically after a delay once it is stable again.

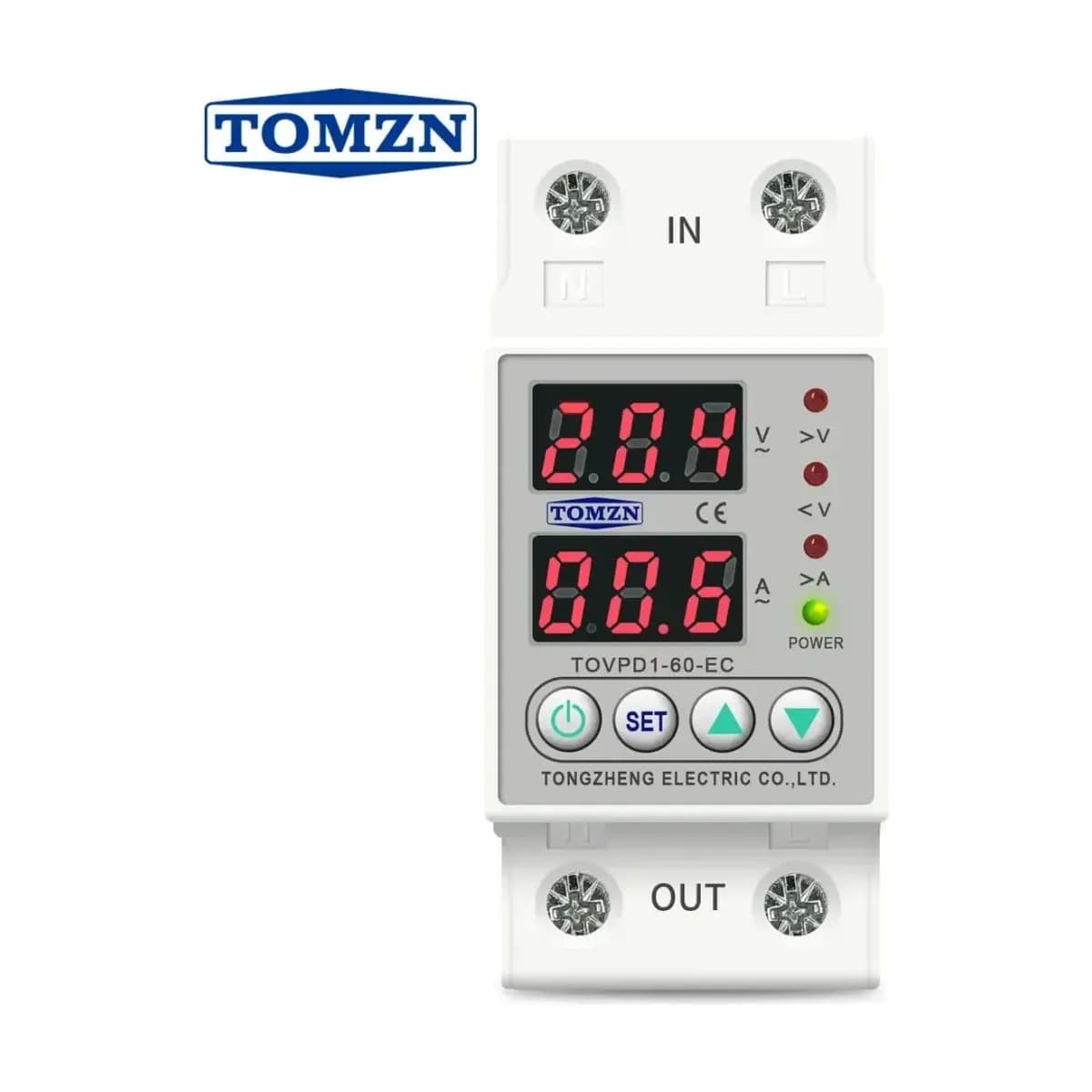

TOMZN's DIN-rail TOVPD1 protectors (single-phase, 40 A and 63 A) show the live voltage and current and let you set the over-voltage, under-voltage and over-current trip points and the reconnect delay. The TOVPD1-63DK disconnects both live and neutral. The three-phase TOVPD3-63VA adds phase-loss, phase-sequence and asymmetry protection for motors. For individual appliances, the plug-in TOVS-16Z and TOSVA-16 protect a single socket.
We supply TOMZN protectors for homes, shops, offices and machine panels. Tell us the load current and whether the supply is single or three-phase, and we recommend the right protector.
The codes our customers ask for most. Add the ones you need to your quote list — or send any other Voltage Protectors variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|
| TOVPD1-63 | DIN-rail voltage protector 1P+N, 63 A, adjustable OV/UV/OC, voltage display | 1-ph · 63 A | |
| TOVPD1-40M | 18 mm DIN-rail voltage protector 1P+N, 40 A, OV/UV/OC, voltage and current display | 1-ph · 40 A | |
| TOVPD1-63DK | DIN-rail voltage protector, 63 A, disconnects both L and N | 1-ph · 63 A · L+N | |

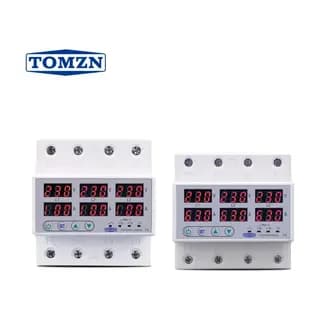

| TOVPD3-63VA | 3-phase DIN-rail protector, 63 A, OV/UV/OC, asymmetry and phase-sequence protection | 3-ph · 63 A | |
| TOVPD3-63LW | 3-phase Wi-Fi smart protector with voltage, current, energy, leakage and temperature protection | 3-ph · Wi-Fi | |
| TOMPD-63L | Timer + voltage protector with multi-function meter, cuts L and N | 1-ph · timer | |
| TOVS-16Z | Plug-in voltage protector, 16 A, over- and under-voltage cut-off | Plug-in · 16 A | |
| TOSVA-16 | Plug-in voltage and current protector, adjustable 1–16 A | Plug-in · 1–16 A |
Send a photo of the TOMZN part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
TOMZN Voltage Protectors prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Protection from low and high voltage and surges after load-shedding.
Three-phase protection against phase loss and wrong sequence.
DIN-rail protection at the distribution board.
More from TOMZN
8 part numbersTOMZN dual-power automatic transfer switches (ATS) for automatic changeover between mains and generator: DIN-rail TOQ6 and TOQ9 (63 A), three-phase TOQ7, and MCB-type TOQ3 and TOQ1M up to 125 A.
6 part numbersTOMZN solar PV protection: TOB1Z-63 DC miniature circuit breakers (500 V DC), TOPV PV fuse holders up to 1100 V DC, TOM7Z DC MCCBs and IP-rated PV combiner boxes.
6 part numbersTOMZN smart Wi-Fi circuit breakers and protectors (Tuya / Smart Life app): remote on/off, timers, voltage and current metering and protection, single-phase and three-phase, up to 100 A.

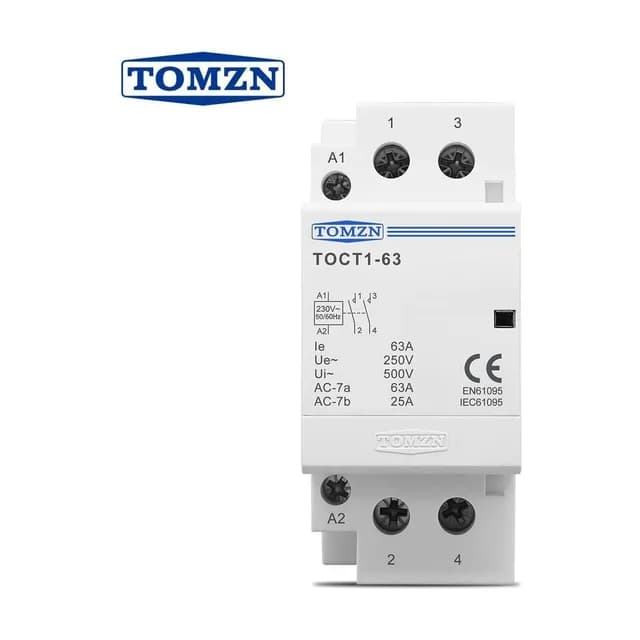

9 part numbersTOMZN DIN-rail modular devices: TOCT1 modular contactors (16–100 A), TORT7 time relays, Bluetooth TOS timer switches, TOB1-63 MCBs, TOB7L RCCBs and TOB6L-63H AFDD/RCBO.
FAQs
For a whole distribution board, a DIN-rail TOVPD1-63 (single-phase) is the usual choice. For one appliance, a plug-in TOVS-16Z or TOSVA-16.
No. It protects against wrong voltage; you still need an MCB or breaker for short-circuit protection.
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
The table shows the codes we are asked for most; we offer the other Voltage Protectors variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Yes. We offer genuine TOMZN products only — no copies, and no substitutes without your approval.
Talk to an engineer
Send the part numbers and quantities, a BOM or a nameplate photo. We check availability and reply with an itemised quotation.
