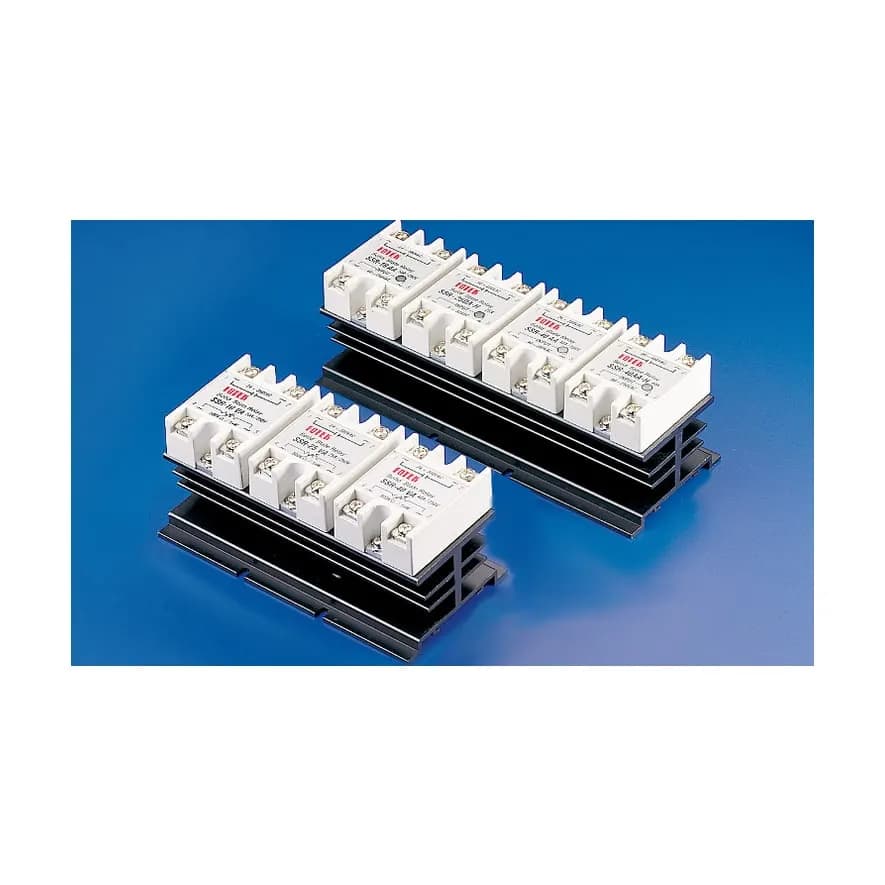

FotekSSR-40DASingle-phase solid-state relay, 40 A, 3–32 V DC control, 24–380 V AC load
On orderSeries: SSR-DA
- Rated current
- 40 A
- Input voltage
- 4 – 32 V DC
- Response time
- 8.3 ms (60 Hz)
- Load voltage
- 24 – 380 V AC
- Control method
- Zero cross
- Isolation
- 4 kVrms
- Genuine product
- Engineer-checked before quoting
- Delivery across Pakistan
Overview
A single-phase solid-state relay for switching heaters and other AC loads silently and without contact wear. It is driven directly from a PLC or temperature controller output (4–32 V DC) and uses zero-cross switching to reduce electrical noise. Mount it on a suitable heat sink for full 40 A load current.
- 40 A load current, 24–380 V AC
- DC control 4–32 V from PLC or temperature controller
- Zero-cross switching for low noise
- 4 kV isolation, overheat protection circuit
Specifications
| Rated current | 40 A |
|---|---|
| Input voltage | 4 – 32 V DC |
| Response time | 8.3 ms (60 Hz) |
| Load voltage | 24 – 380 V AC |
| Control method | Zero cross |
| Isolation | 4 kVrms |
