PilzOn order
750104
PNOZ s4 safety relay, 24 V DC, 3 N/O + 1 N/C + 1 semiconductor output
- Supply voltage
- 24 V DC
- Outputs
- 3 N/O, 1 N/C, 1 semiconductor
- Width
- 22.5 mm
Price on request

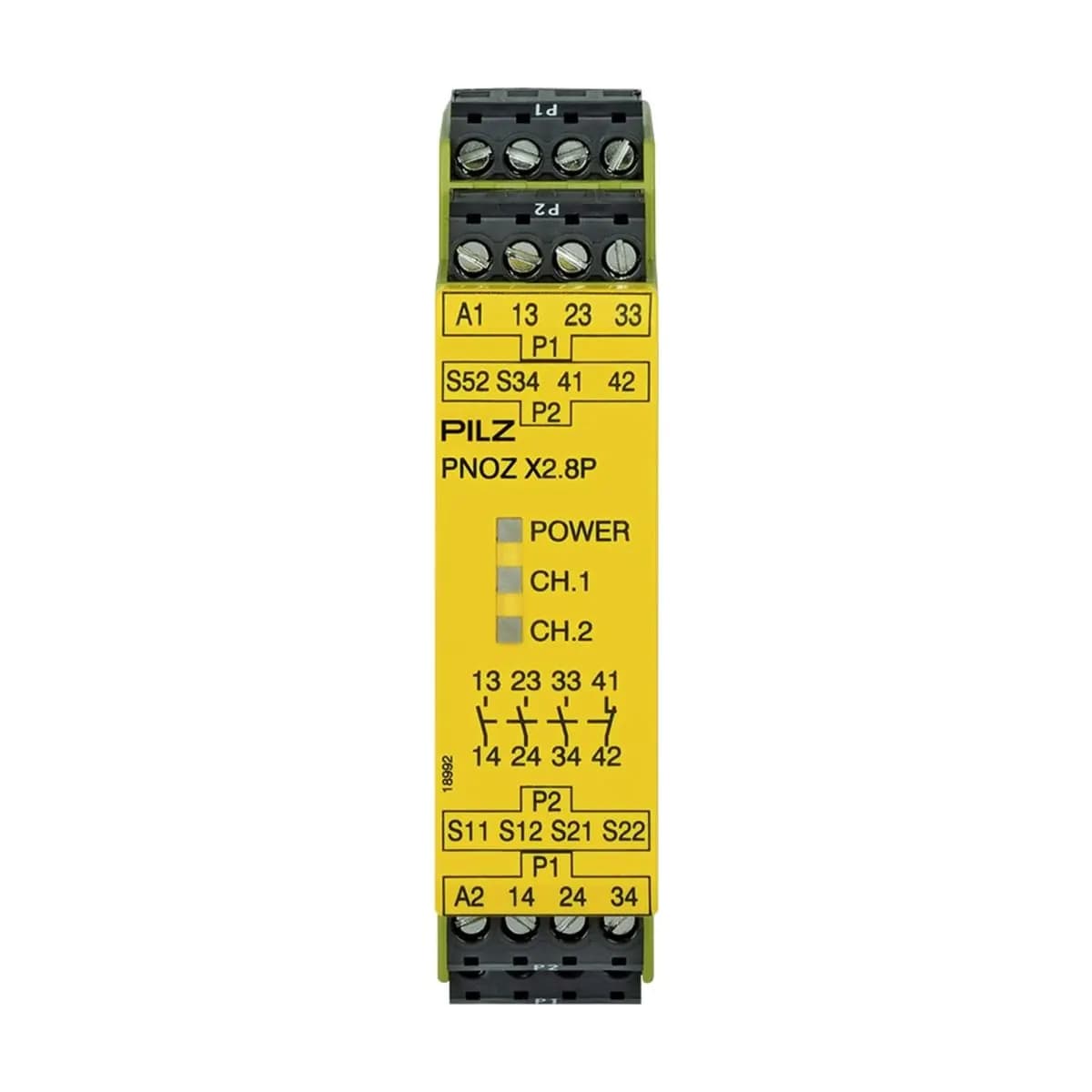

Pilz777301PNOZ X2.8P safety relay, 24 V AC/DC, 3 N/O + 1 N/C
On orderSeries: PNOZ X
- Supply voltage
- 24 V AC/DC
- Outputs
- 3 N/O safety, 1 N/C auxiliary
- Contact rating
- AC1 6 A / 240 V; DC1 6 A / 24 V
- Width
- 22.5 mm
- Inputs
- 1- or 2-channel
- Start
- Automatic or manual
- Genuine product
- Engineer-checked before quoting
- Delivery across Pakistan
Overview
A standalone safety relay for monitoring emergency-stop buttons and safety gates. It accepts single or dual-channel wiring, with or without detection of shorts across contacts, and offers automatic or manual start. Three safety contacts switch the machine off reliably, and the fourth auxiliary contact reports status to the PLC.
- Monitors E-STOP and safety gates
- 1- or 2-channel wiring, cross-short detection
- Automatic or manual start
- 22.5 mm housing, plug-in screw terminals
Specifications
| Supply voltage | 24 V AC/DC |
|---|---|
| Outputs | 3 N/O safety, 1 N/C auxiliary |
| Contact rating | AC1 6 A / 240 V; DC1 6 A / 24 V |
| Width | 22.5 mm |
| Inputs | 1- or 2-channel |
| Start | Automatic or manual |
Need installation or integration?
Our engineers can install, program and commission it — Control Panels.
