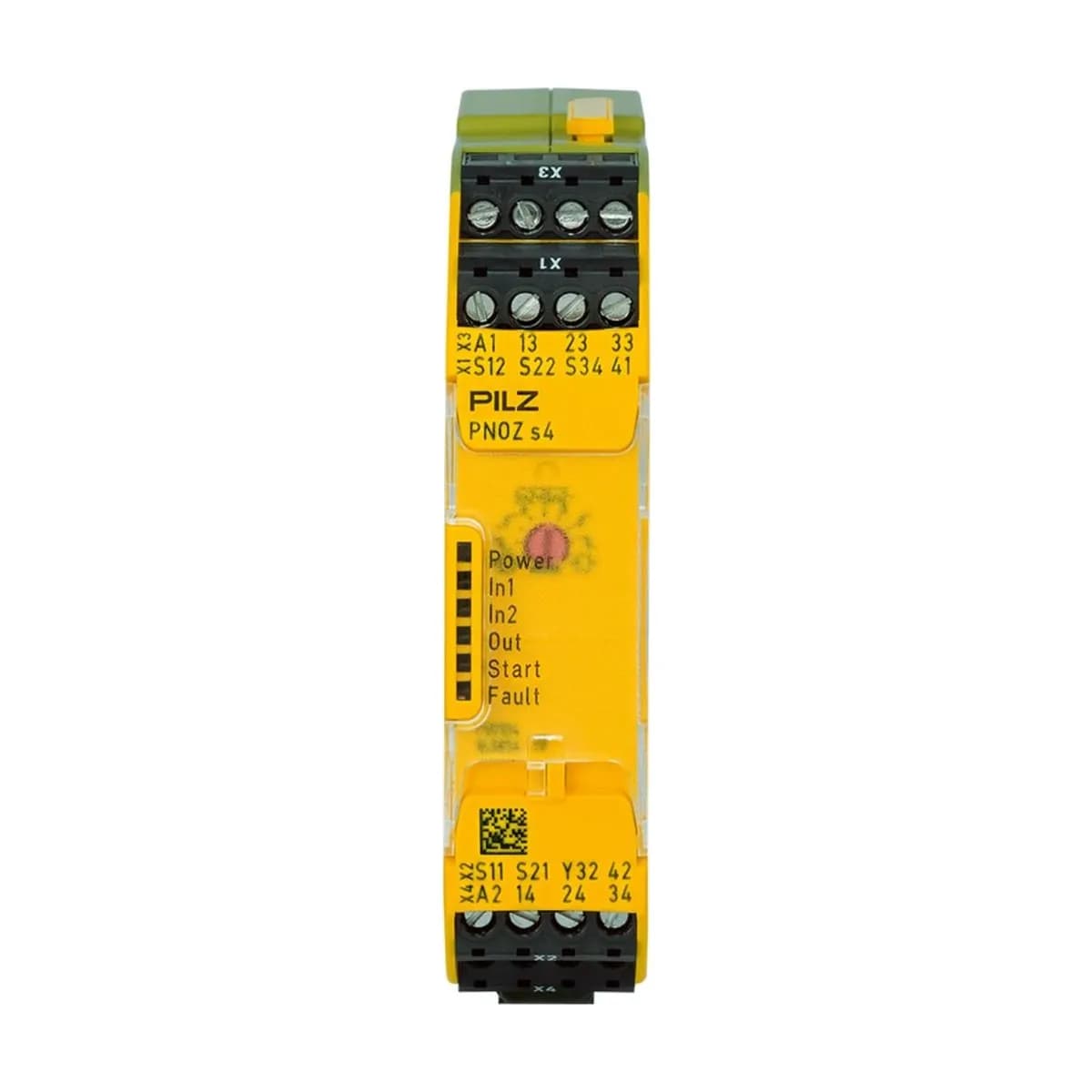

Pilz750104PNOZ s4 safety relay, 24 V DC, 3 N/O + 1 N/C + 1 semiconductor output
On orderSeries: PNOZsigma
- Supply voltage
- 24 V DC
- Outputs
- 3 N/O, 1 N/C, 1 semiconductor
- Width
- 22.5 mm
- Inputs
- 1- or 2-channel
- Start
- Manual or automatic
- Protection type
- IP40
- Genuine product
- Engineer-checked before quoting
- Delivery across Pakistan
Overview
A compact PNOZsigma safety relay for emergency stops, safety gates and light curtains. It handles single or dual-channel inputs with optional cross-short detection, supports manual or automatic start and provides three safety contacts, one auxiliary contact and a semiconductor output for diagnostics to the PLC.
- Monitors E-STOP, safety gates and light curtains
- 3 N/O safety contacts, 1 N/C, 1 semiconductor output
- Manual or automatic start
- 22.5 mm wide, plug-in screw terminals
Specifications
| Supply voltage | 24 V DC |
|---|---|
| Outputs | 3 N/O, 1 N/C, 1 semiconductor |
| Width | 22.5 mm |
| Inputs | 1- or 2-channel |
| Start | Manual or automatic |
| Protection type | IP40 |
Need installation or integration?
Our engineers can install, program and commission it — Control Panels.
