The WAGO 750 I/O system is a modular, slice-by-slice I/O system: a head station on the left — a controller or a fieldbus coupler — followed by as many I/O modules as the application needs, ending with an end module. It is widely used in machine building, water treatment and building automation.
PFC200 controllers (750-8212, 750-8210) are programmable PLCs with Ethernet, serial ports and support for Modbus, OPC UA and MQTT; the PFC100 (750-8101, 750-8100) is the compact, economical version. Where the PLC is from another maker, a fieldbus coupler such as 750-362 (Modbus TCP) or 750-375 (PROFINET) turns the same I/O modules into remote I/O. Digital modules come with 8 or 16 channels, analog modules for 4–20 mA and 0–10 V, and RTD modules for Pt100 temperature sensors; a 750-602 supply module feeds the field side.
We supply controllers, couplers and I/O modules and can configure and program WAGO systems. Send your I/O list and we put together the station.
The codes our customers ask for most. Add the ones you need to your quote list — or send any other PFC200 Controllers & 750 I/O System variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|

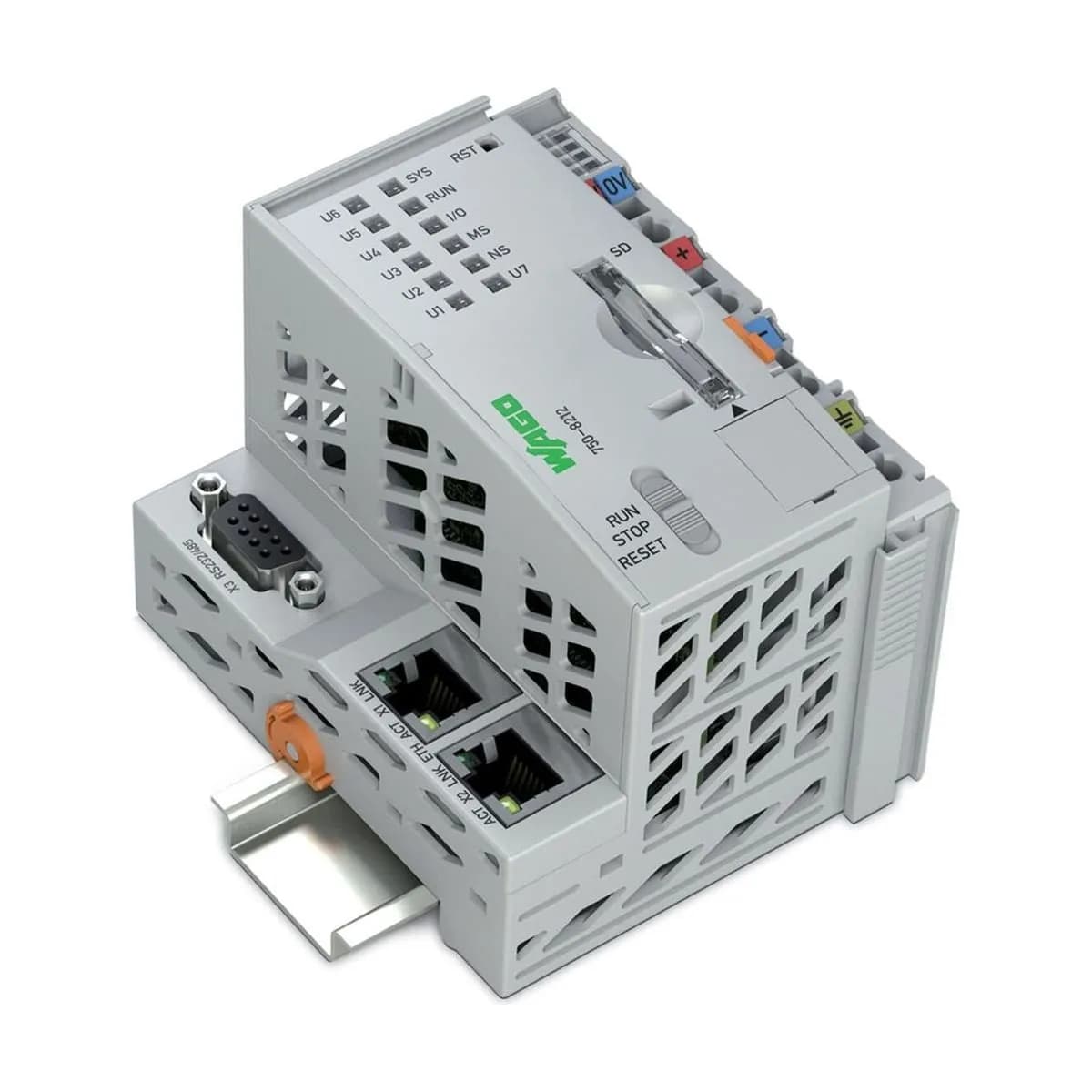

| 750-8212 | Controller PFC200, 2nd generation, 2 × Ethernet, RS-232/485 | PFC200 | |
| 750-8210 | Controller PFC200, 2nd generation, 4 × Ethernet | PFC200 · 4 × ETH | |
| 750-8101 | Controller PFC100, 2 × Ethernet | PFC100 | |
| 750-8100 | Controller PFC100 ECO, 2 × Ethernet | PFC100 ECO | |
| 750-362 | Fieldbus coupler Modbus TCP, 4th generation | Modbus TCP | |
| 750-375 | Fieldbus coupler PROFINET IO, 3rd generation, Advanced | PROFINET | |
| 750-430 | 8-channel digital input, 24 V DC, 3 ms | 8 DI | |
| 750-1405 | 16-channel digital input, 24 V DC, 3 ms | 16 DI | |
| 750-530 | 8-channel digital output, 24 V DC, 0.5 A | 8 DO | |
| 750-1504 | 16-channel digital output, 24 V DC, 0.5 A | 16 DO | |
| 750-455 | 4-channel analog input, 4–20 mA, single-ended | 4 AI · mA | |
| 750-461 | 2-channel analog input for Pt100/RTD sensors | 2 AI · Pt100 | |
| 750-550 | 2-channel analog output, 0–10 V DC | 2 AO · V | |
| 750-559 | 4-channel analog output, 0–10 V DC | 4 AO · V | |
| 750-602 | Power supply module, 24 V DC | Supply | |
| 750-600 | End module | End module |
Send a photo of the WAGO part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
WAGO PFC200 Controllers & 750 I/O System prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
PFC controllers as the main PLC on machines.
Couplers adding I/O to Siemens or other PLCs over PROFINET or Modbus TCP.
Analog signals from pumps, tanks and treatment plants.
More from WAGO
15 part numbersWAGO 221 lever splicing connectors for solid, stranded and fine-stranded conductors up to 4 mm² or 6 mm², 2 to 5 conductors, plus inline versions, mounting carriers and 2273 PUSH WIRE connectors.
15 part numbersWAGO switched-mode power supplies: Eco (2.5–10 A), Classic (1–10 A, TopBoost) and Pro 2 (5–40 A with TopBoost, PowerBoost and communication), 24 V and 48 V DC, plus electronic circuit breakers.
15 part numbersWAGO TOPJOB S rail-mount terminal blocks with Push-in CAGE CLAMP connection: through, ground, multi-conductor, double-deck and fuse terminal blocks from 2.5 to 16 mm², with jumpers, end plates and end stops.
6 part numbersWAGO relay modules: slim 857 and 859 series (6 mm, 1 changeover), 788 series (15 mm, up to 16 A) and 858 series with 4 changeover contacts and manual operation, for 24 V control circuits.
11 part numbersWAGO Smart Printer thermal transfer printer (300 dpi) and marking materials: WMB-Inline and Mini-WSB markers on reels, marking strips, WMB marking cards, ink ribbons and rollers.
FAQs
A PFC controller runs the program itself. A fieldbus coupler has no program; it makes the I/O modules available to another PLC over PROFINET or Modbus TCP.
Yes, with the PROFINET coupler 750-375 and the WAGO GSDML file in TIA Portal.
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
The table shows the codes we are asked for most; we offer the other PFC200 Controllers & 750 I/O System variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Yes. We offer genuine WAGO products only — no copies, and no substitutes without your approval.
