WAGOPush-in CAGE CLAMP terminal blocks from 2.5 mm² to 16 mm² for control panels.
Price on request — quoted per part number
Quotes within 24 hours on working days
TOPJOB S terminal blocks bring conductors into and out of a control panel. Solid conductors and ferruled wires are simply pushed in; fine-stranded wires are connected by pressing the release. The Push-in CAGE CLAMP spring keeps constant contact pressure, so terminals never need re-tightening — a real advantage on machines that vibrate or panels that heat up.
The 2002 series (2.5 mm²) is the everyday control-wiring terminal: grey 2002-1201 through terminals, blue 2002-1204 for neutral or intrinsically safe circuits and green-yellow 2002-1207 ground terminals. The 2004, 2006, 2010 and 2016 series cover 4 mm² to 16 mm² for power wiring. Three and four-conductor, double-deck and fuse terminal blocks save space, and push-in jumpers link terminals without extra wire.
We supply TOPJOB S terminals, jumpers, end plates, end stops and markers for new panels and extensions. Send your terminal list and we quote the complete strip.
The codes our customers ask for most. Add the ones you need to your quote list — or send any other TOPJOB S Rail-Mount Terminal Blocks variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|

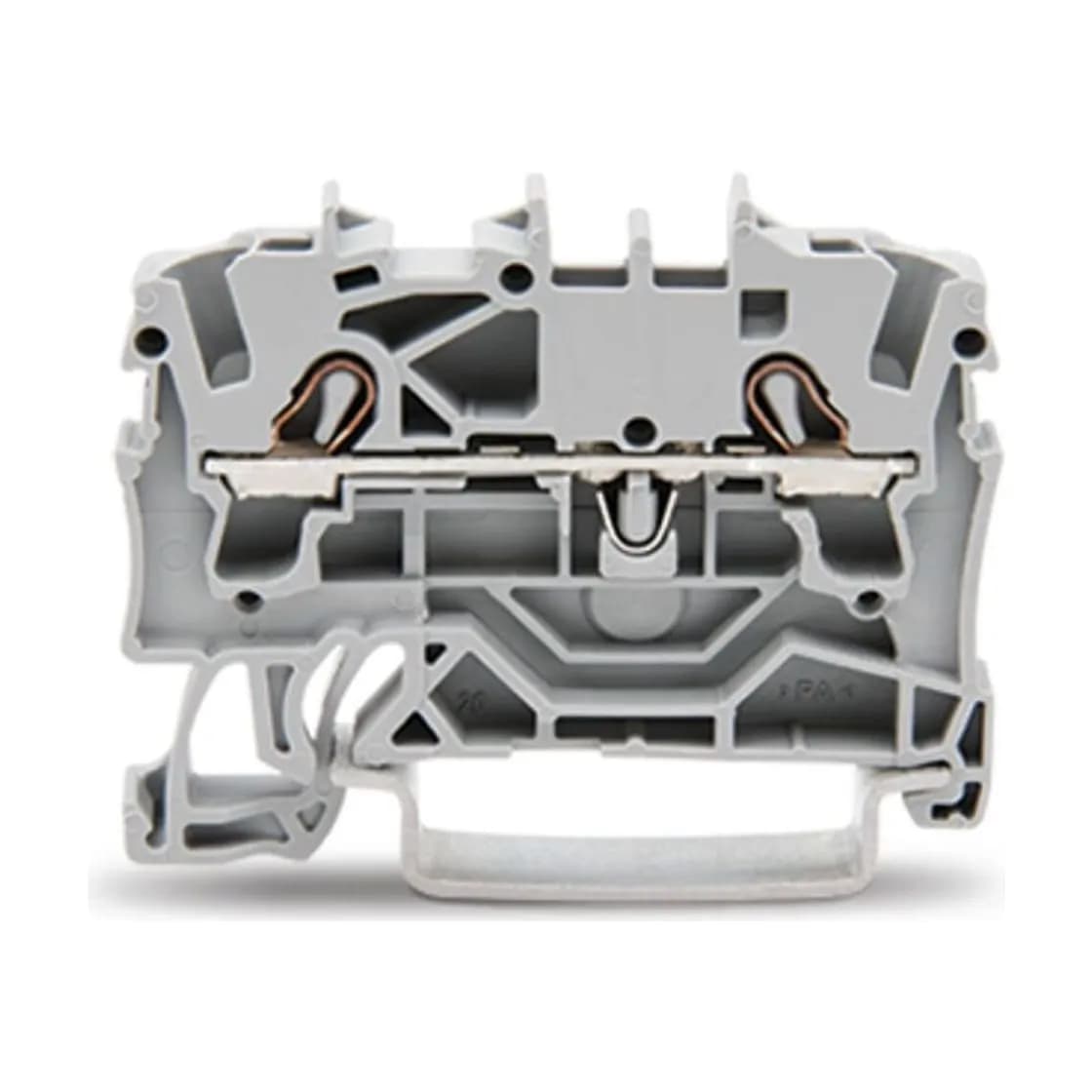

| 2002-1201 | 2-conductor through terminal block, 2.5 mm², grey | 2.5 mm² · grey | |
| 2002-1204 | 2-conductor through terminal block, 2.5 mm², blue | 2.5 mm² · blue | |

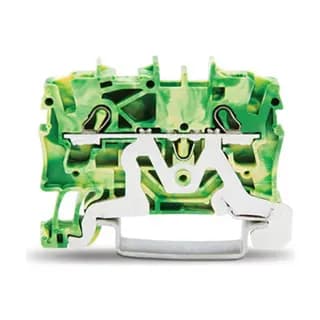

| 2002-1207 | 2-conductor ground terminal block, 2.5 mm², green-yellow | 2.5 mm² · PE | |
| 2002-1301 | 3-conductor through terminal block, 2.5 mm² | 2.5 mm² · 3-cond. | |
| 2002-1401 | 4-conductor through terminal block, 2.5 mm² | 2.5 mm² · 4-cond. | |
| 2002-2201 | Double-deck terminal block, through/through, 2.5 mm² | Double-deck | |
| 2002-1611 | 2-conductor fuse terminal block, pivoting holder, 5 × 20 mm fuse | Fuse 5 × 20 | |
| 2004-1201 | 2-conductor through terminal block, 4 mm² | 4 mm² | |
| 2006-1201 | 2-conductor through terminal block, 6 mm² | 6 mm² | |
| 2010-1201 | 2-conductor through terminal block, 10 mm² | 10 mm² | |
| 2016-1201 | 2-conductor through terminal block, 16 mm² | 16 mm² | |
| 2002-1291 | End and intermediate plate, 0.8 mm, grey | Accessory | |
| 2002-402 | Push-in jumper, 2-way, insulated | Jumper 2-way | |
| 2002-403 | Push-in jumper, 3-way, insulated | Jumper 3-way | |
| 249-116 | Screwless end stop, 6 mm wide, DIN rail | End stop |
Send a photo of the WAGO part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
WAGO TOPJOB S Rail-Mount Terminal Blocks prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Field wiring terminals for sensors, valves and motors.
4–16 mm² terminals for supply and motor feeders.
Spring connection that stays tight under vibration.
Drives, controls and energy savings for spinning, weaving and processing mills.
Explore
Coding, labeling and end-of-line automation for faster, error-free packing.
Explore
Hygienic automation, coding and water systems for high-speed food and beverage lines.
Explore
Robust instrumentation, drives and safety systems for demanding processes.
ExploreMore from WAGO
15 part numbersWAGO 221 lever splicing connectors for solid, stranded and fine-stranded conductors up to 4 mm² or 6 mm², 2 to 5 conductors, plus inline versions, mounting carriers and 2273 PUSH WIRE connectors.
15 part numbersWAGO switched-mode power supplies: Eco (2.5–10 A), Classic (1–10 A, TopBoost) and Pro 2 (5–40 A with TopBoost, PowerBoost and communication), 24 V and 48 V DC, plus electronic circuit breakers.
6 part numbersWAGO relay modules: slim 857 and 859 series (6 mm, 1 changeover), 788 series (15 mm, up to 16 A) and 858 series with 4 changeover contacts and manual operation, for 24 V control circuits.
16 part numbersWAGO PFC100 and PFC200 controllers, Modbus TCP and PROFINET fieldbus couplers and 750 series I/O modules — digital, analog and RTD — for machine and building automation.
11 part numbersWAGO Smart Printer thermal transfer printer (300 dpi) and marking materials: WMB-Inline and Mini-WSB markers on reels, marking strips, WMB marking cards, ink ribbons and rollers.
FAQs
Solid conductors and ferruled conductors push straight in. Fine-stranded conductors without ferrules can be connected by pressing the release button first.
Use the green-yellow ground terminal (for example 2002-1207), which connects to the DIN rail.
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
The table shows the codes we are asked for most; we offer the other TOPJOB S Rail-Mount Terminal Blocks variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Yes. We offer genuine WAGO products only — no copies, and no substitutes without your approval.
Talk to an engineer
Send the part numbers and quantities, a BOM or a nameplate photo. We check availability and reply with an itemised quotation.
Quotes within 24 hours on working days
Mon–Sat, 10:00 am – 8:00 pm
